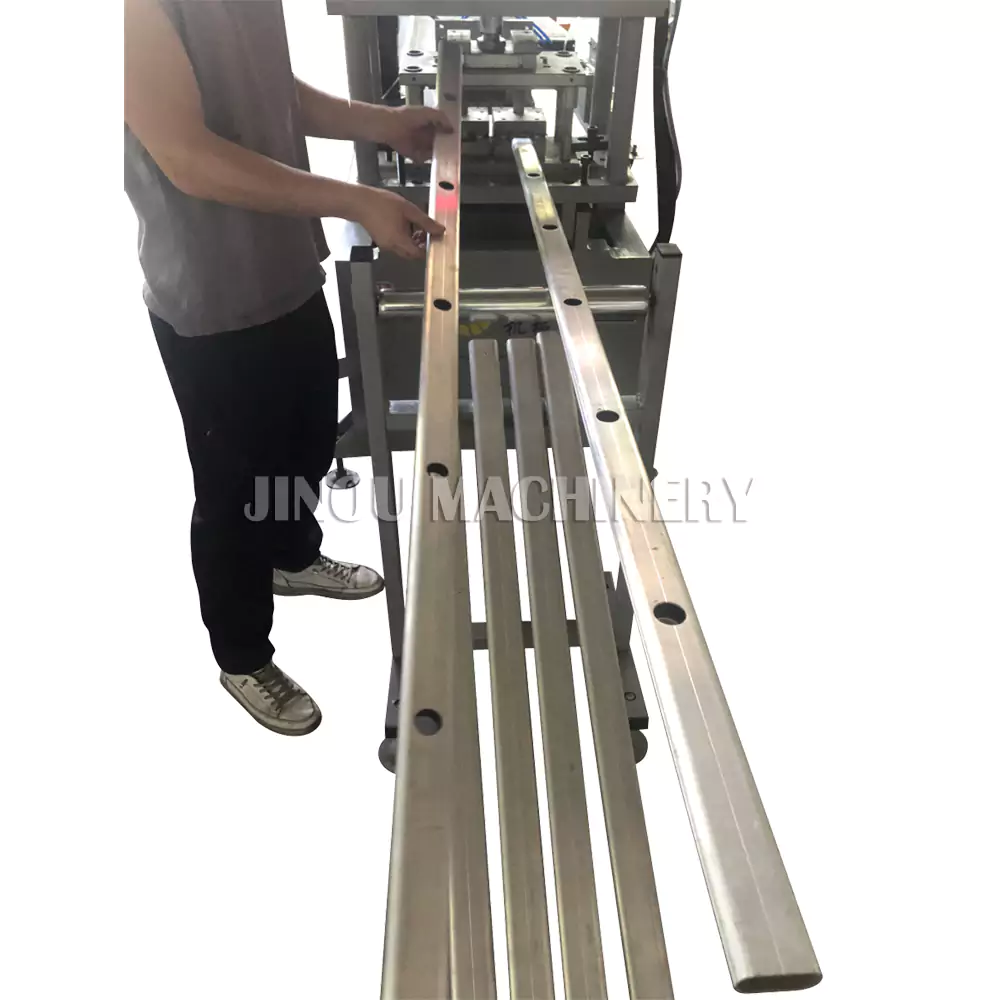

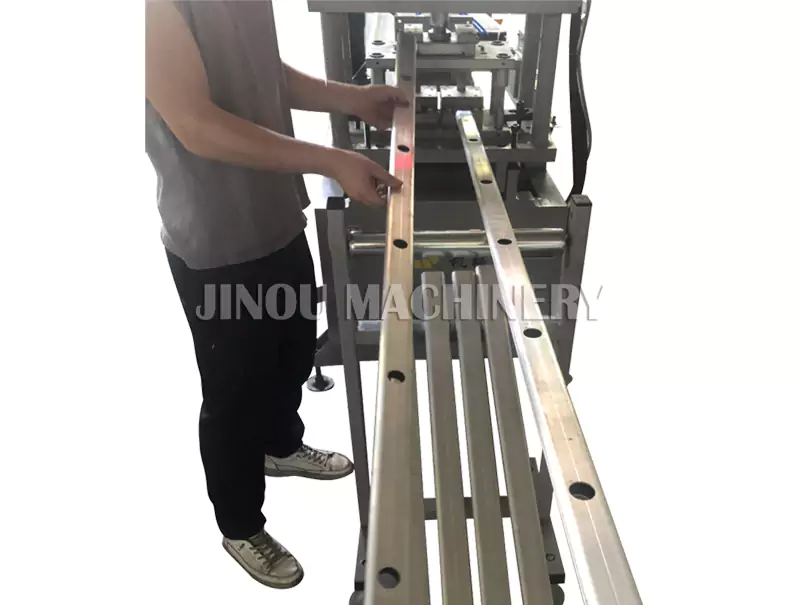

This automatic machine allows to perform simultaneous punching operations on two ladder profiles for the aluminium folding ladder for the rear rail .
Features:
- Fully automatic solution
- Punching through inner mandrel
- Easy matrix replacement for different hole formats
- Prepared to produce two profiles at the same time
- Displacement of the profiles controlled by a servomotor
- Possibility to adjust the pitch between holes
- Fully automatic solution
- Easy matrix replacement for different hole formats
- Prepared to produce two profiles at the same time
- Displacement of the profiles controlled by a servomotor
- Possibility to adjust the pitch between holes
- Length can be customized.
- Voltage can be customized.
- Rungs distance can be both regular distance and irregular distance .
- Machine can be with angle or punch without angle
- Inial holes can be changed .
- Rungs distance can be changed .
- Easy to set up the system .
- Easy to handle the machine .
- Easy to change the mold .
Technical data:
- Profile section (mm): According to Drawings
- Profile length: 1500 up to 6000mm
- Pitch between holes: Customized
- Cycle time: 4 to 5 seconds
- Power: 7,5 kW
- Voltage: 380V, 3 phase, 50 Hz
Name: 6 meters  Automatic double work station CNC punching machine different mold can make different holes.
Initial holes: minimum 100-125 mm
Machine type: Hydraulic
Efficency: 40holes / minutes
Control systme: PLC Control +Screen Touch
Power: 7.5KW
Power Input : 380V / 50HZ
G.W: 1850 kgs

Measures: 600x95x155 cm
