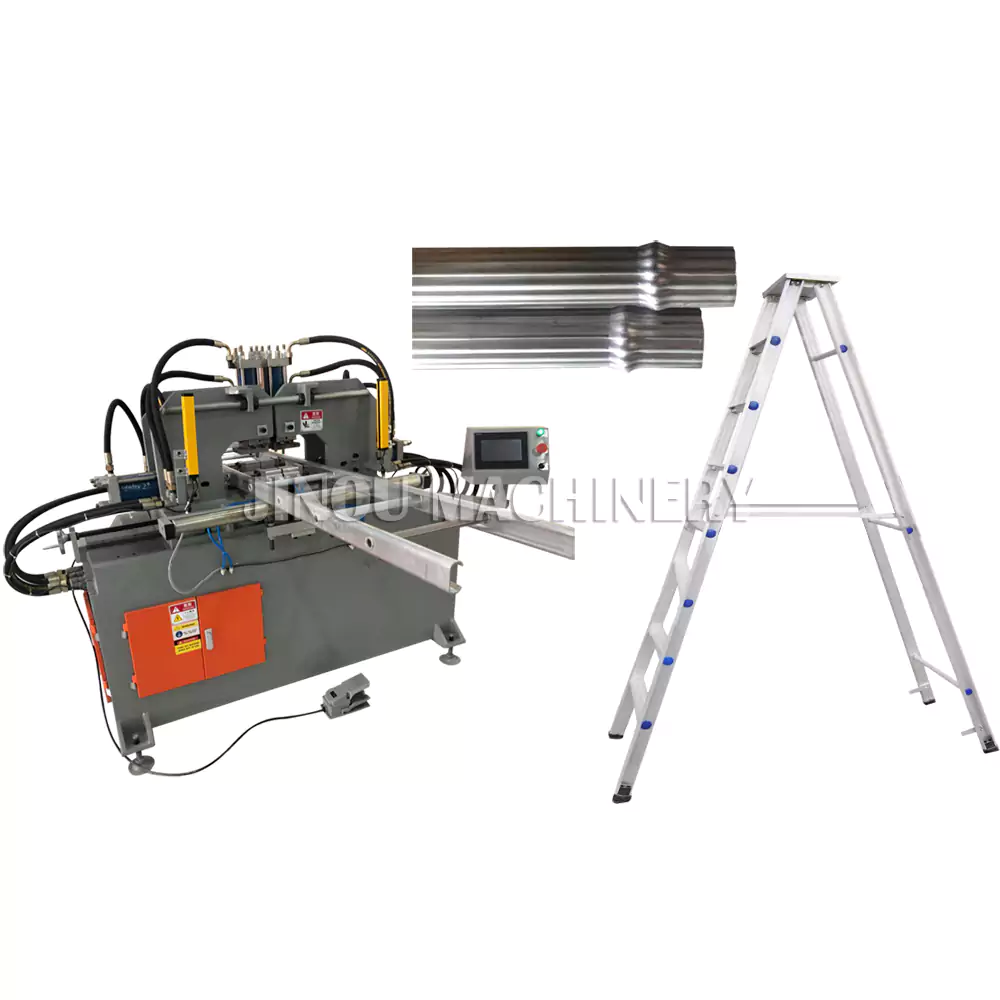

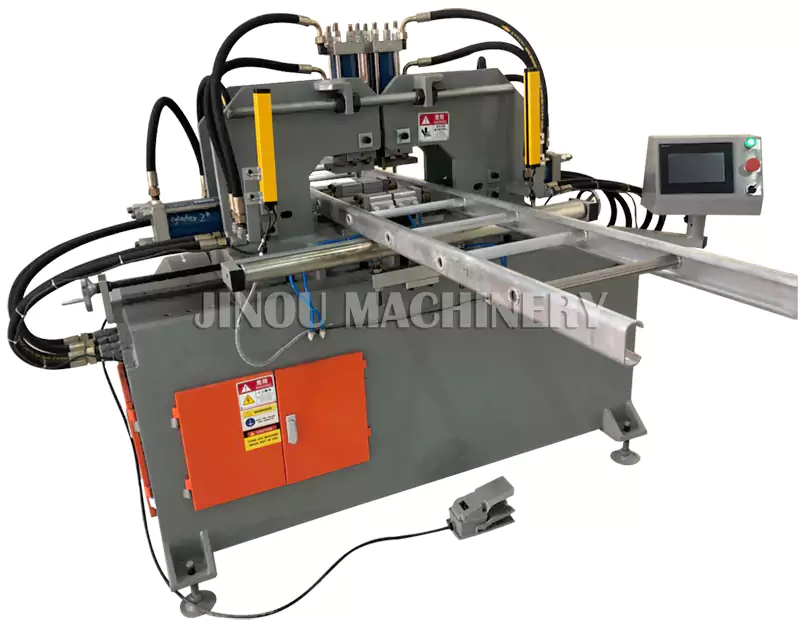

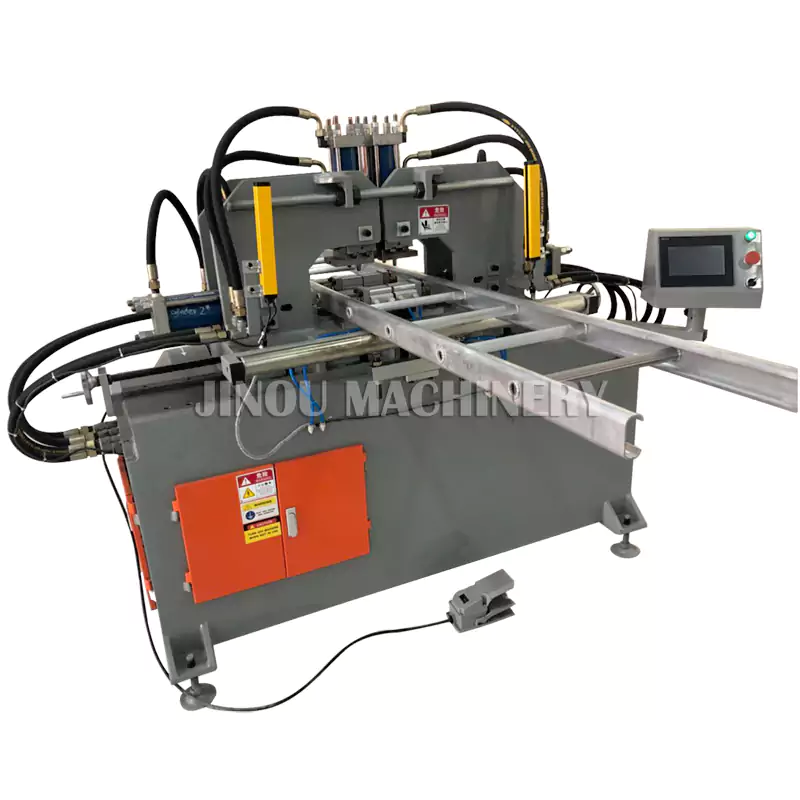

Name: Ladder Making Machine-Dual Head Inner Tube Squeezing Machine
Type: Dual Head Inner Tube Squeezing Machine
Model No.: JOM-R006A

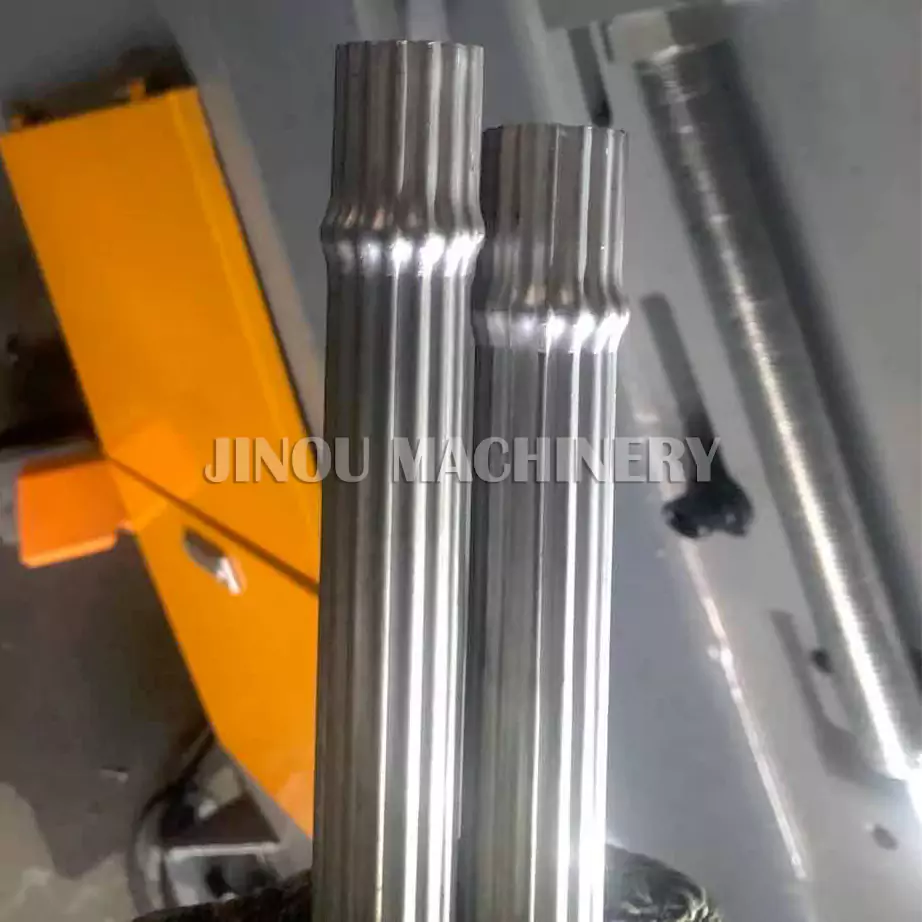

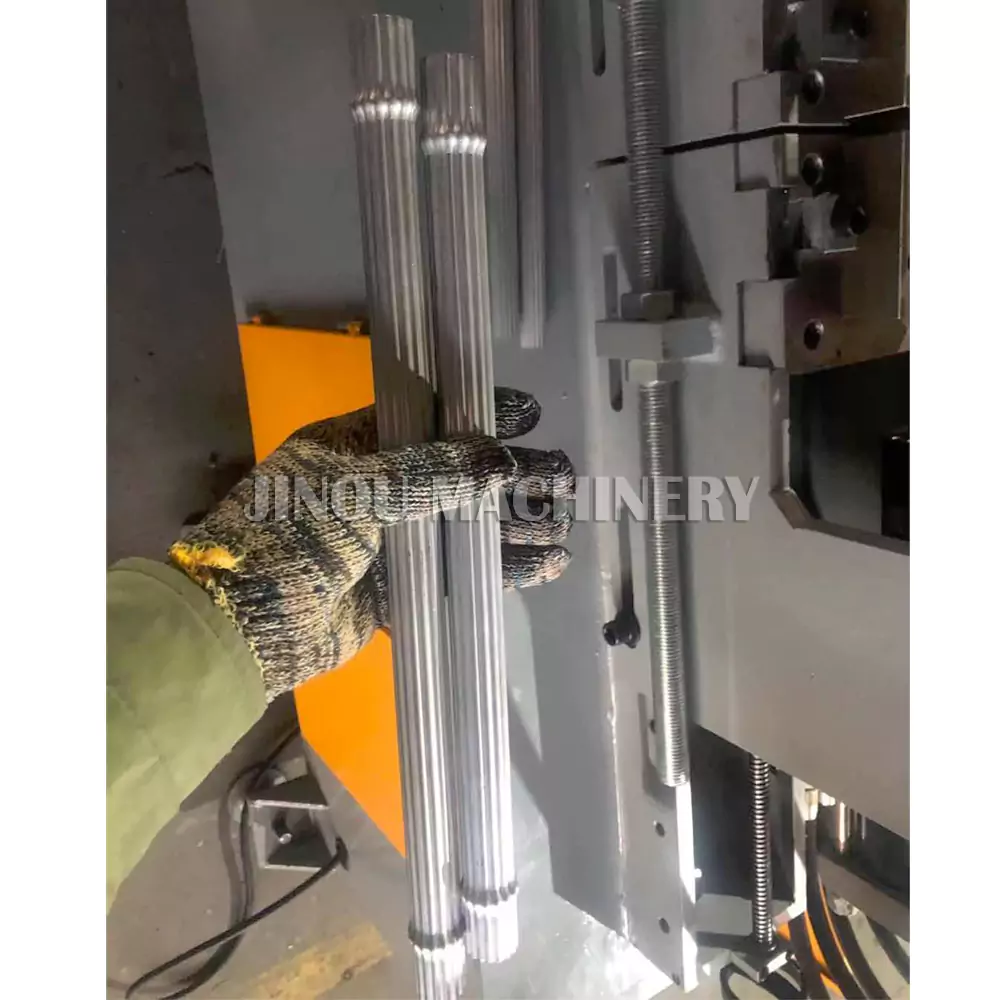

Usage:can be used for Inner tube sqeezing For Round Rungs./Can also be make for the D rungs,just change the mold
Machine Type: Hydraulic
Feeding: Manual Feeding material
System Pressure: 14Mpa
Capacity: 40KN
Air Pressure: 0.6-0.8Mpa
Motor Power: 7.5kw
Voltage: 380V
Ladder width: 300-600mm
Ladder spacing: >280 mm
Maximum squeeze stroke: 150 mm
Machine Size: 235x120x170cm
Machine Weight: 1200kgs
HS CODE: 8463900090
