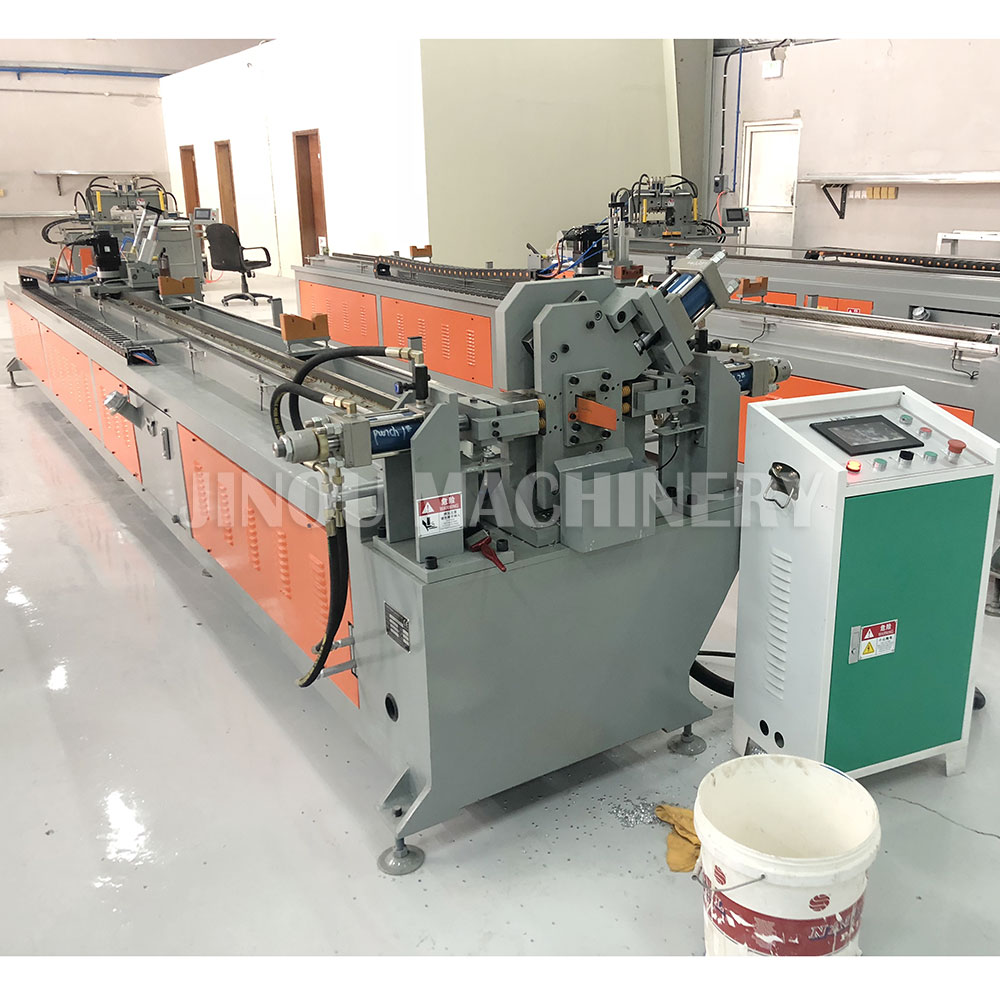

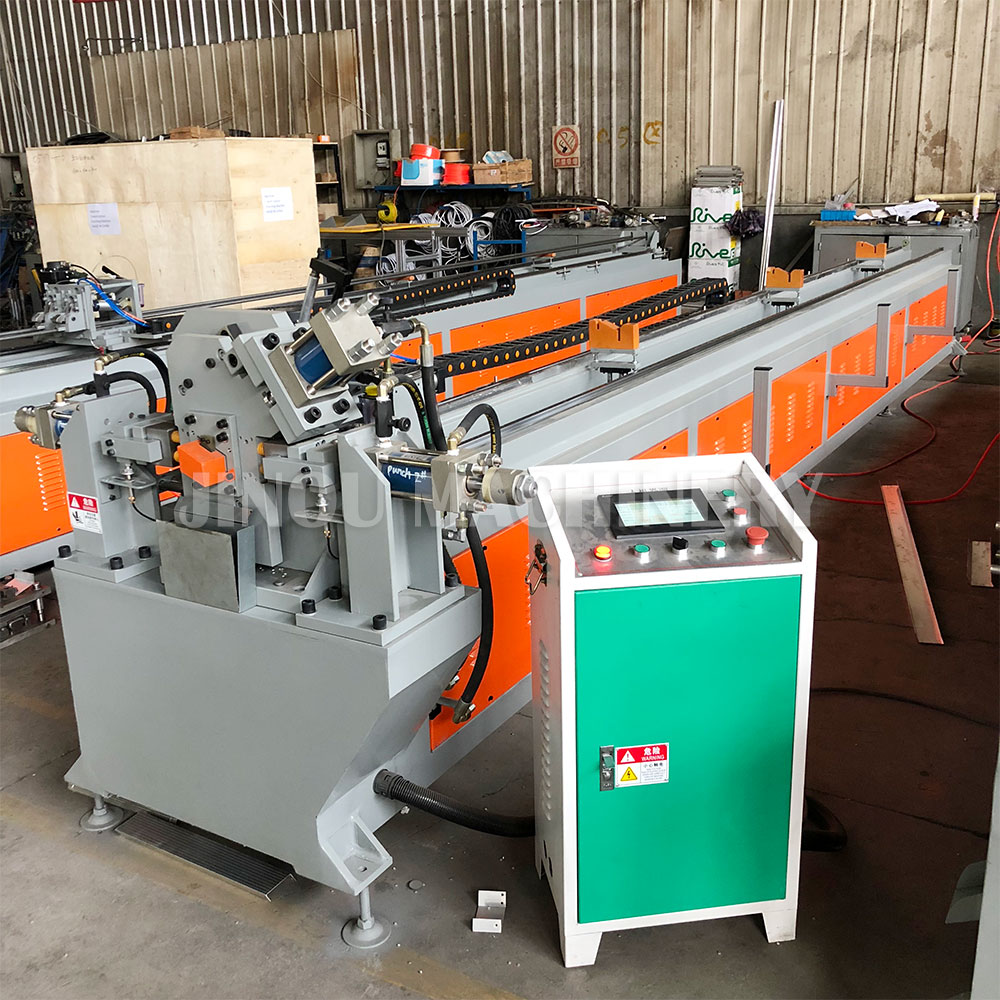

CNC Step Punching and Cutting Machine for Stepladder

CNC Step Punching and Cutting Machine for Stepladder


DETAILED

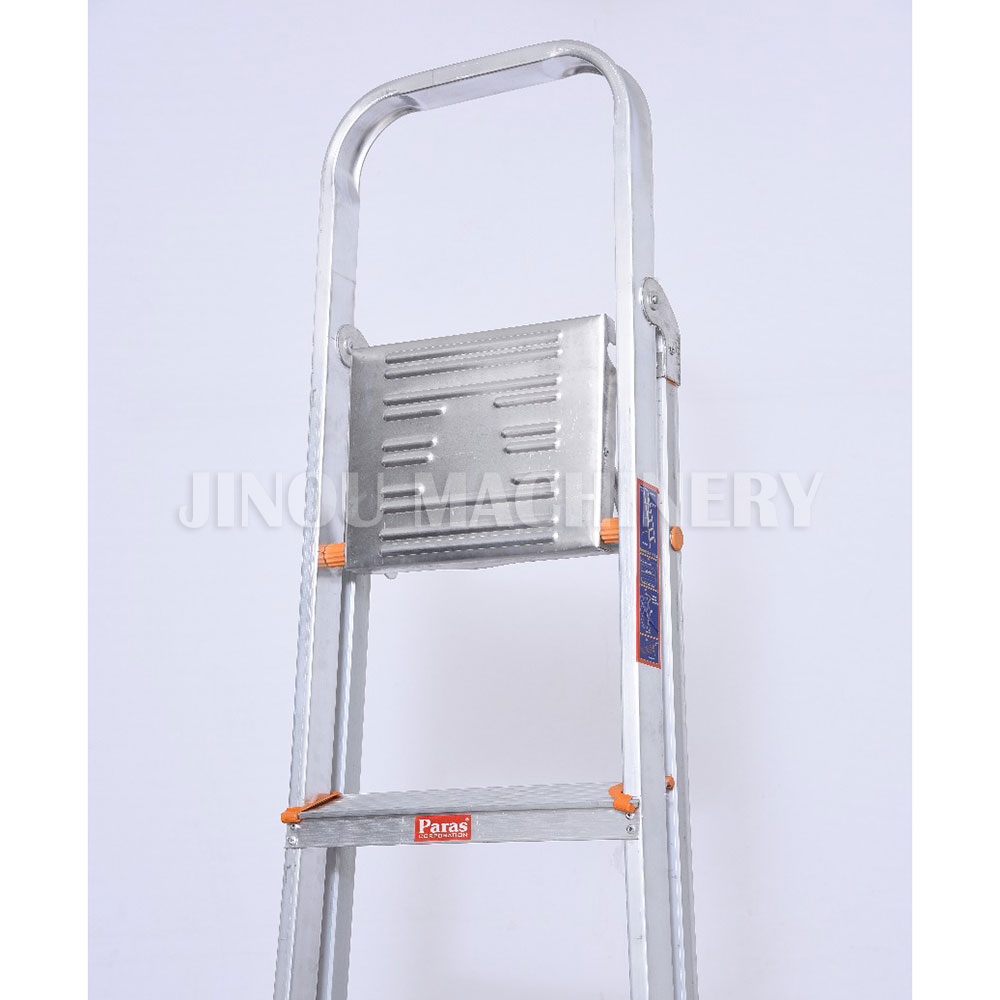

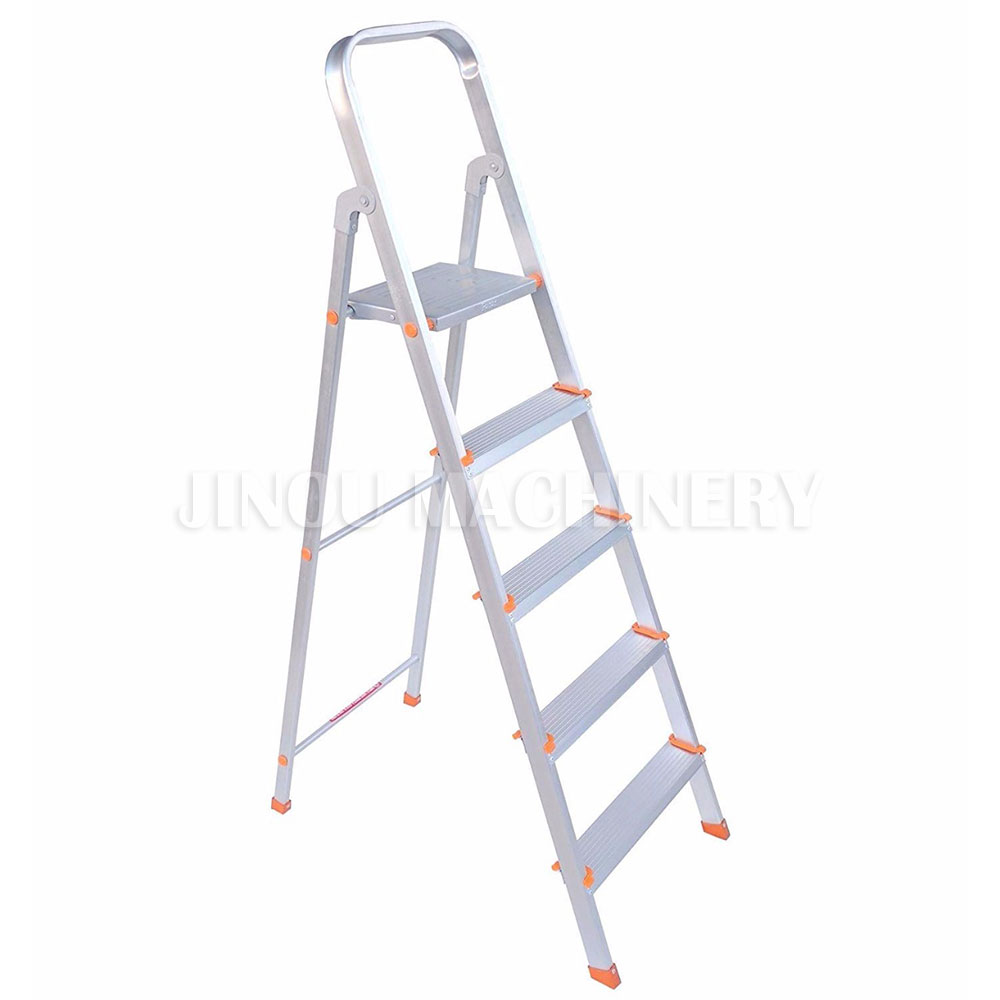

This is a highly automatic CNC  Step Punching and Cutting Machine for the Step of the Aluminim Step Ladder
Can suitable for different drawings of the aluminium steps.
Can Cut different length for the steps.
All the data are controlled by the system .
It’s easy to change the mold.
one movement can finished the punching holes and cutting materials, high effiency .
with one Button to handle, easy to put the materials,
only need one worker to operate the machine.

Technical data:
CNC Step Punching Cutting Machine for A shape Ladder
Functions: Cuttting the profiles and Punch the step holes.
System Pressure: 10 Mpa
Efficiency: 6s/cycle
Motor: 7.5 Kw
Max Length of profile: 6000 mm
Max Punching Stroke: 60 mm
Max Thickness: 2.0 mm
Power Input: 415V/50HZ
Machine size: 710x100x170 cm
HS CODE: 8462490000
