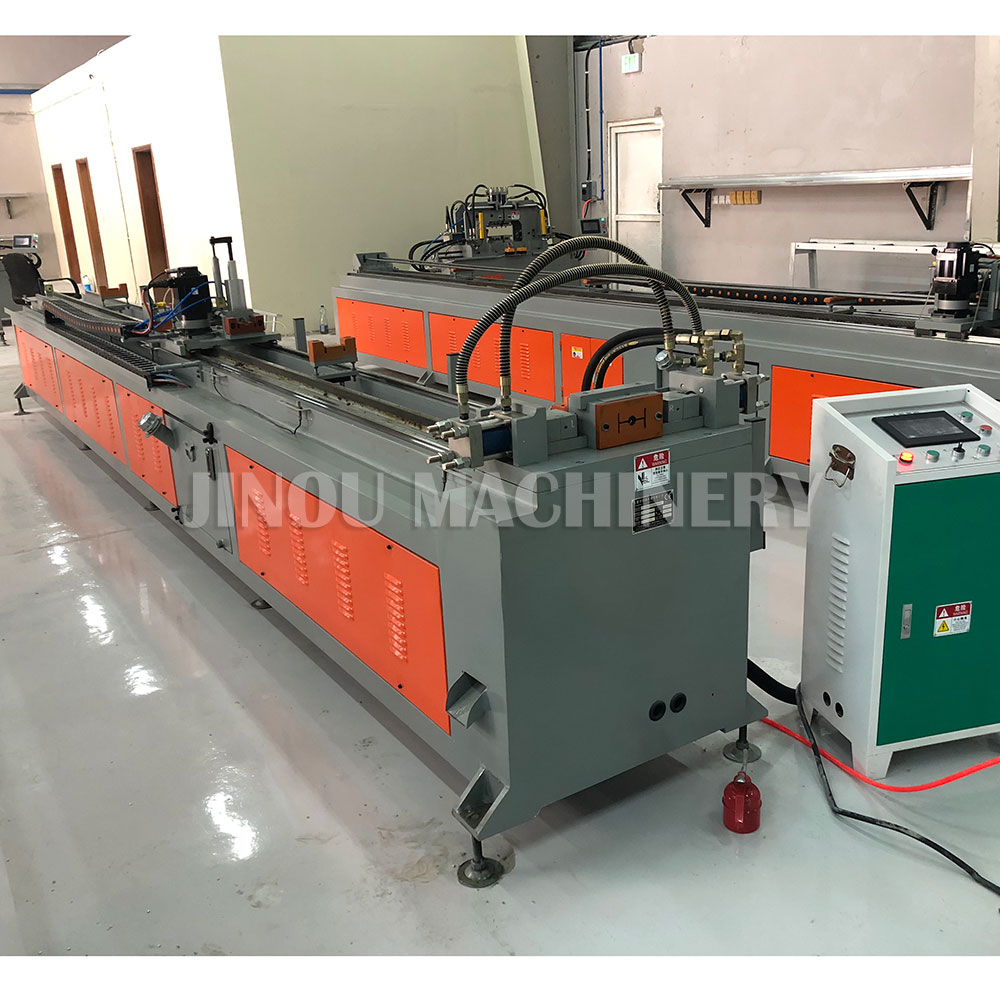

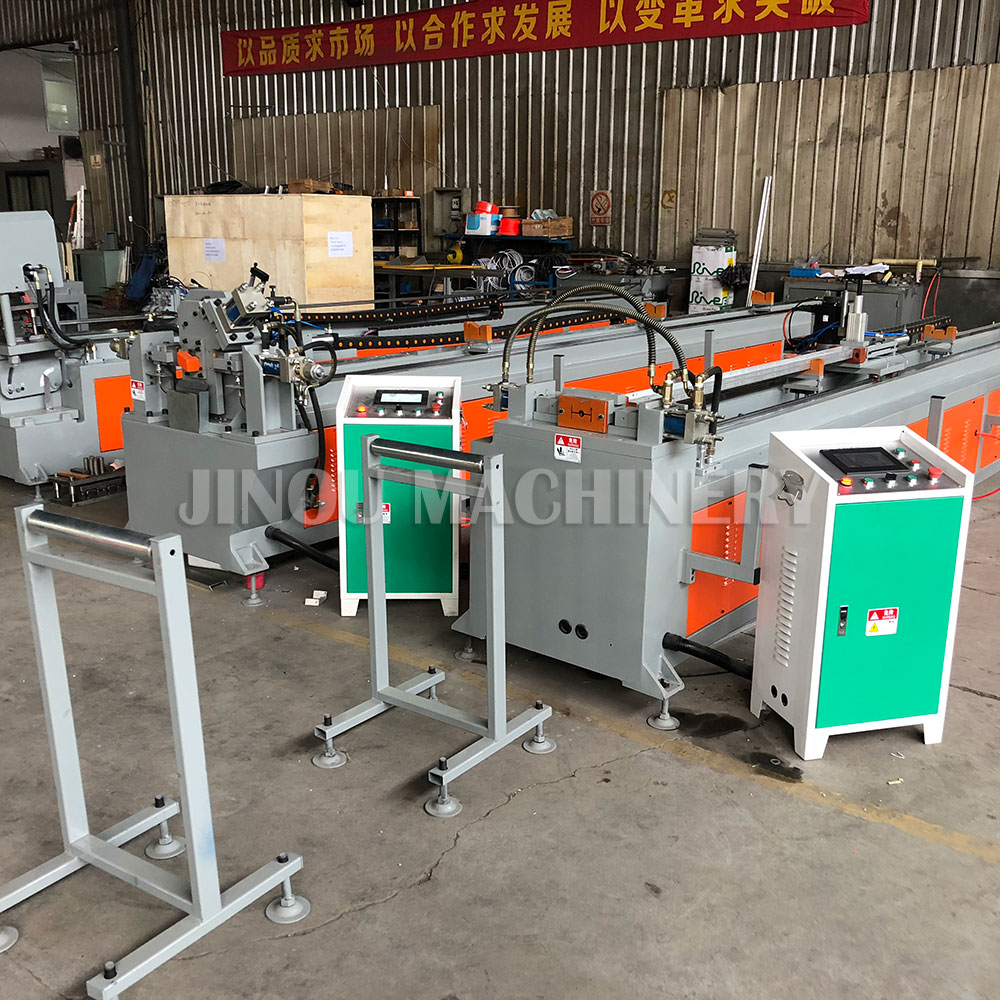

CNC Stile Punching Machine for the Aluminium A type Ladder, This is a High efficiency Ladder making machine for the stiles, and can punch the Left and Right Stiles at the same time .
The Pitch distance can be adjustable .
Suitable for both Aluminium and Fiberglass Stiles.

Techincal information:
Name:CNC Step Punching Cutting Machine for A shape Ladder
Functions :Punching the Left and Right Stiles in one time .
System Pressure:10Mpa
Efficiency:6s/cycle
Motor:7.5Kw
Max Length of profile :6000mm
Max Punching Stroke:20mm
Max Thickness:2.5mm
Power Input : 415V/50HZ
Machine size: 710x100x170cm
HS CODE: 8462490000
