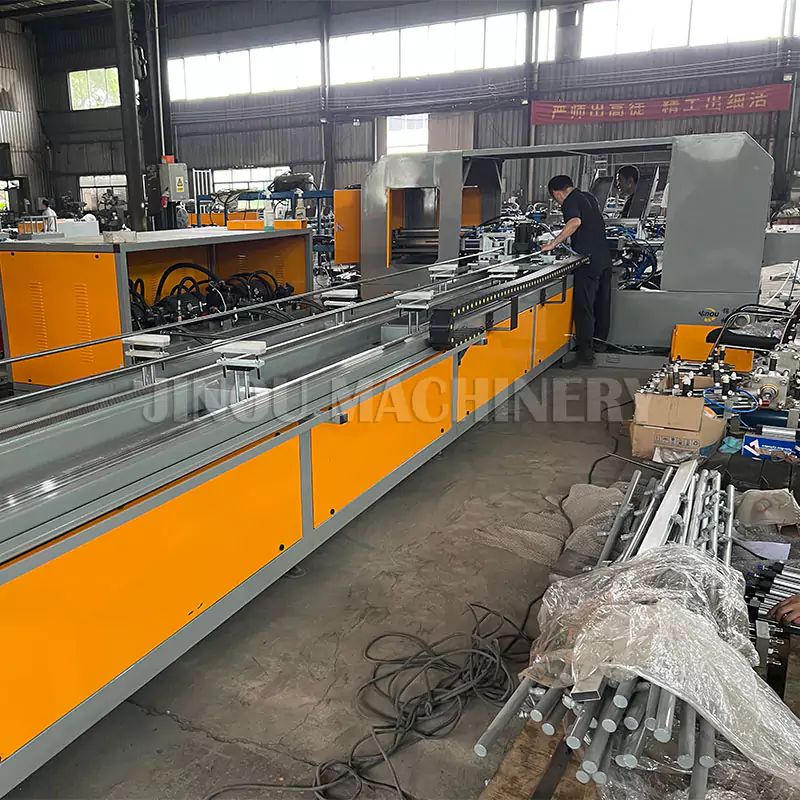

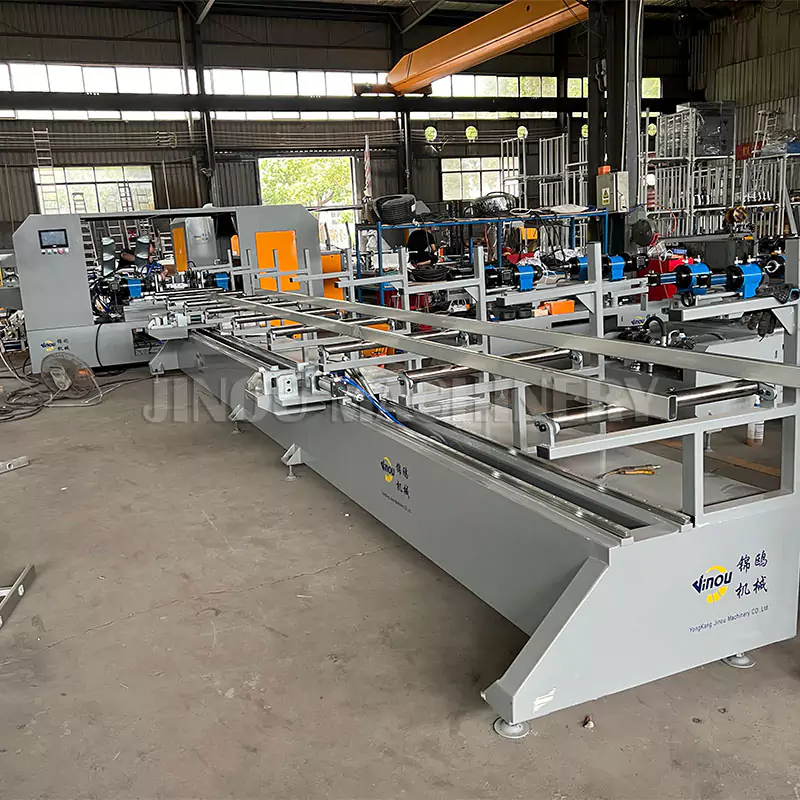

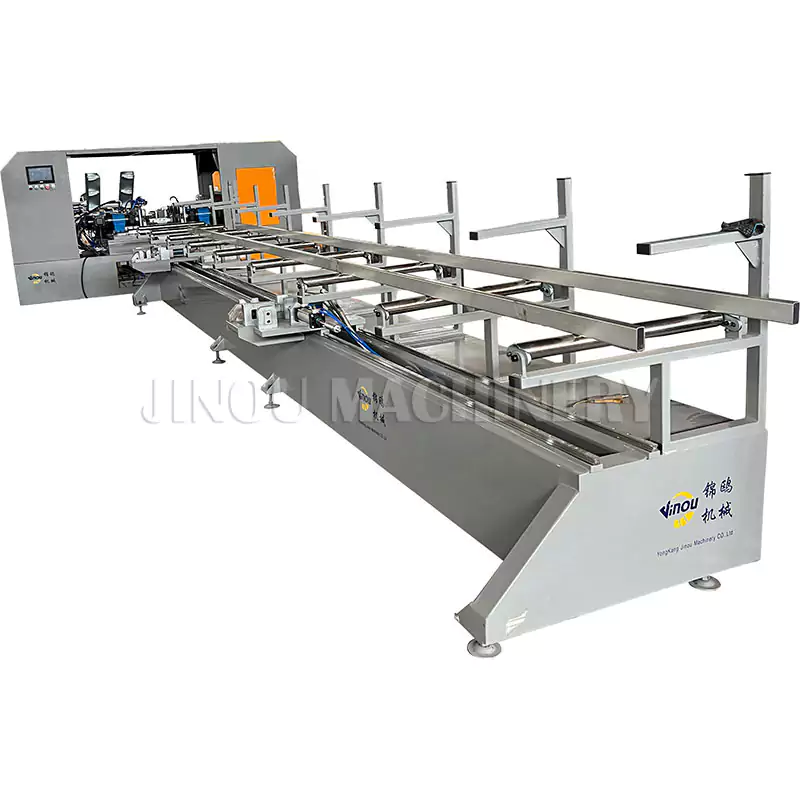

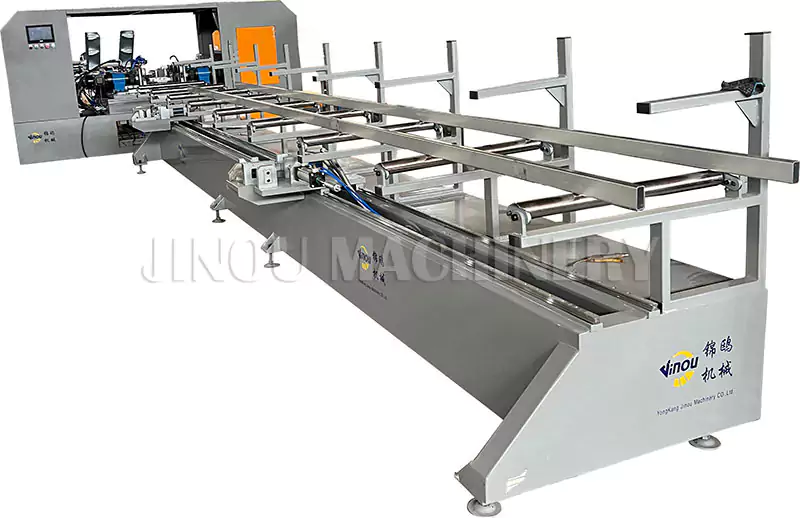

Fully Automatic Ladder Riveting Machine For The Wind System Ladders
Fully Automatic Ladder Riveteing Machine ,
With Punching Holes, Inserting The Rungs ,Expanding And Riverting .
Ladder Making Machine -Fully Automatic Ladder Production Line
Model No.:JOM-D014
(Punching the holes ,Inserting the tubes, expanding and riveting in one Machine)
Cycle Time:25seconds for the punching, inserting, expanding and riveting .
Motor Power: 15 Kw
Power : 380V/50HZ Three phase four wire
Flaring shape :any shape
Process ladder width: 350-600mm,
Distance of ladder rung :260-300mm
Overall dimensions : 7000x3100x1700mm
Net Weight: 3000Kg
HS CODE ：8463900090

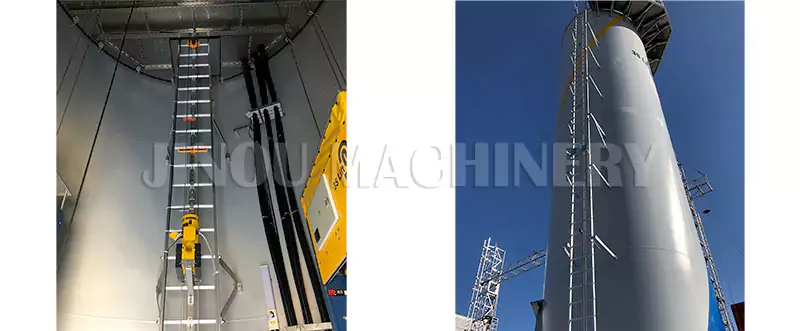

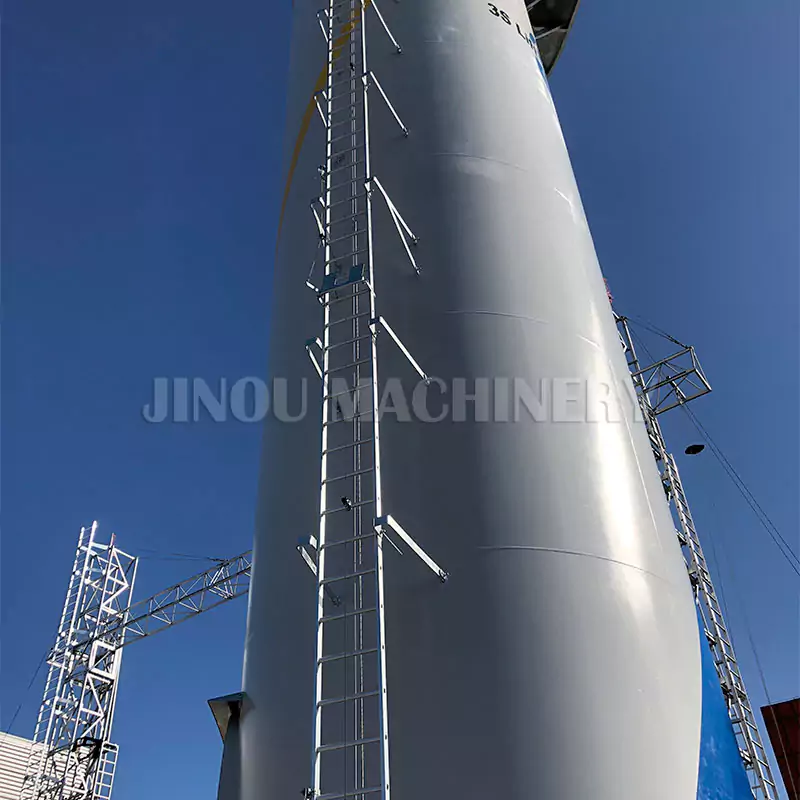

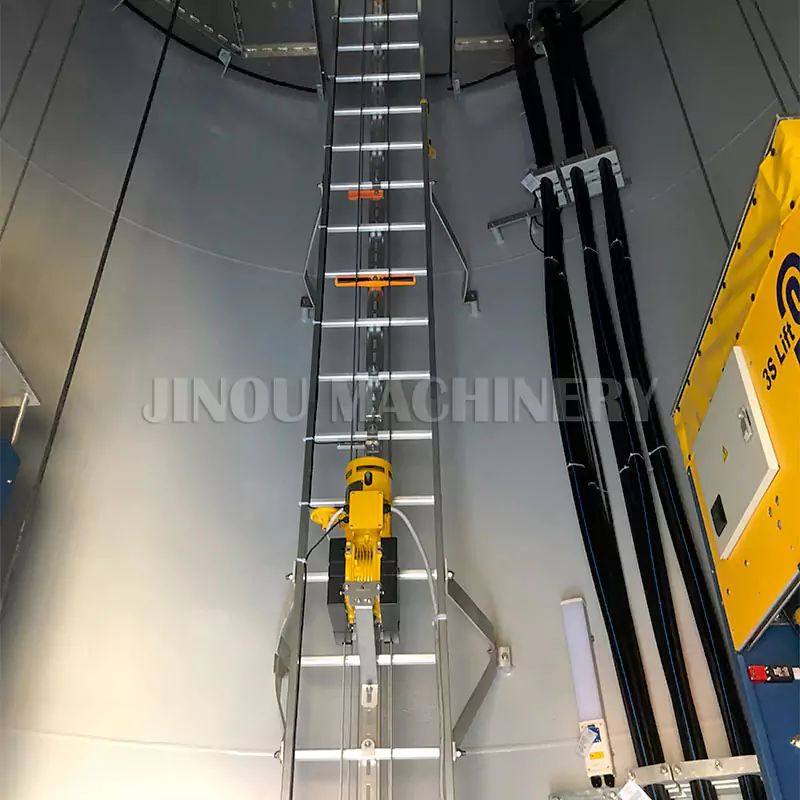

Finished Product Effect
