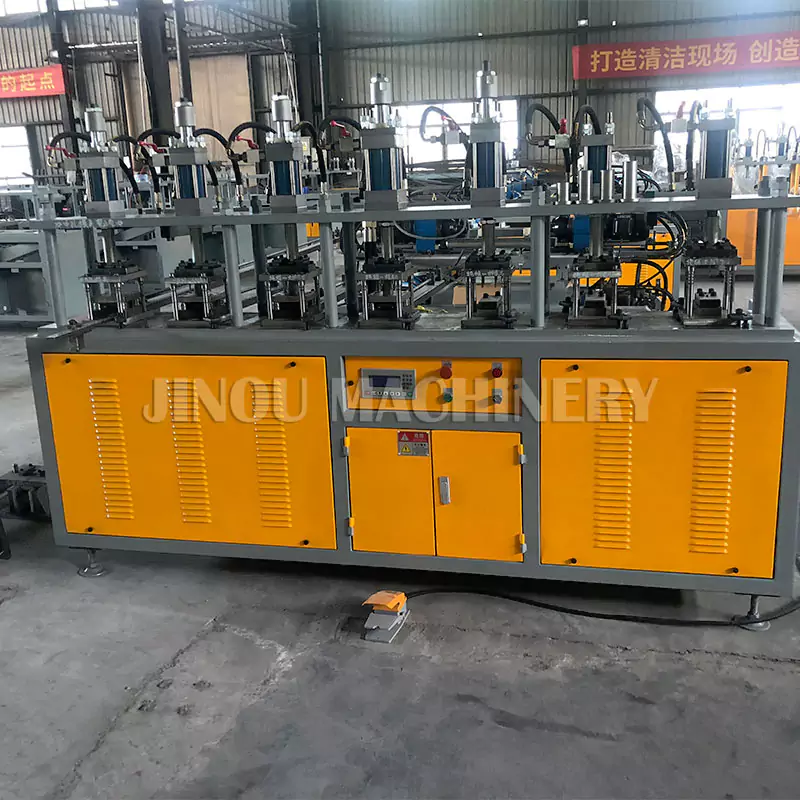

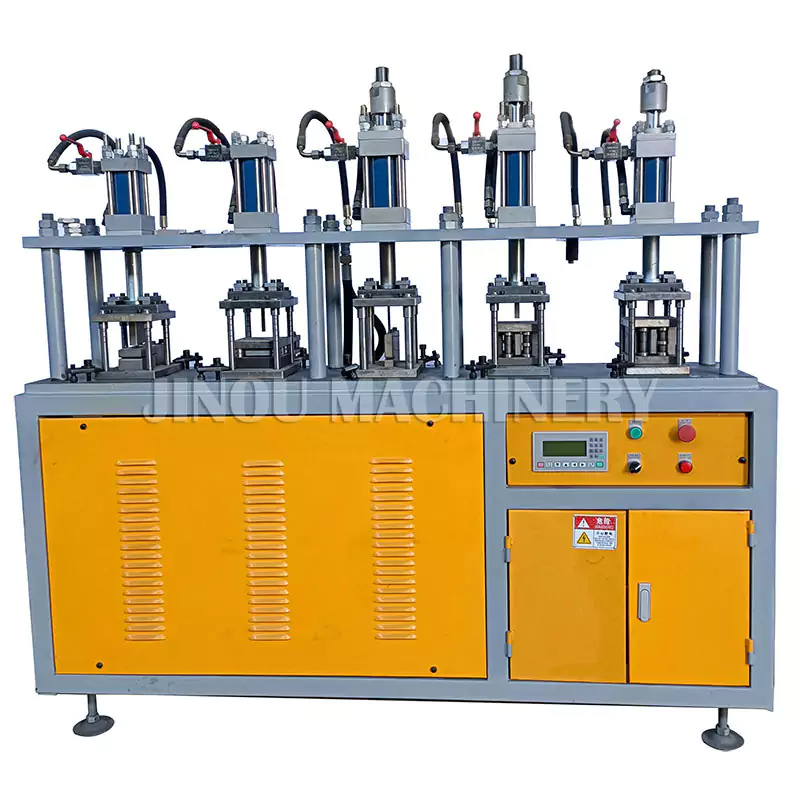

Multi Work Station Punching Machine For Triple Extention Ladders
The machine can install multiple molds at the same time,
Work Station : 1 to 7 Work Stations
Save time for changing and installing mold ,
and reduce the possible damage in installation, thus improving the die life.
Highly centralized installation of molds, to reduce the equipment cover area.
Punching all the pipe holes in one time, reduce taking profiles times and the overall processing time of individual parts.
Hydraulic high-speed Punching, efficient and stable, no noise, improving the workshop environment.
Can be customized according to actual needs tonnage and the number of stations.
Profile size and punching holes size can be customized
Easy to Change Mold,
All molds are customized to different drawings
Work efficiency: 0.8 seconds/times
Tonnage: low pressure/high pressure optional
Min punching press stroke: 75mm
Motor Power low voltage: 2.2KW/high pressure 5.5KW
Weight: 300-500 Kg
Dimensions: 120×70×150 CM

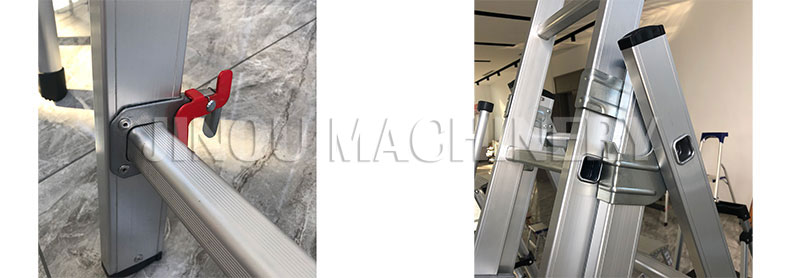

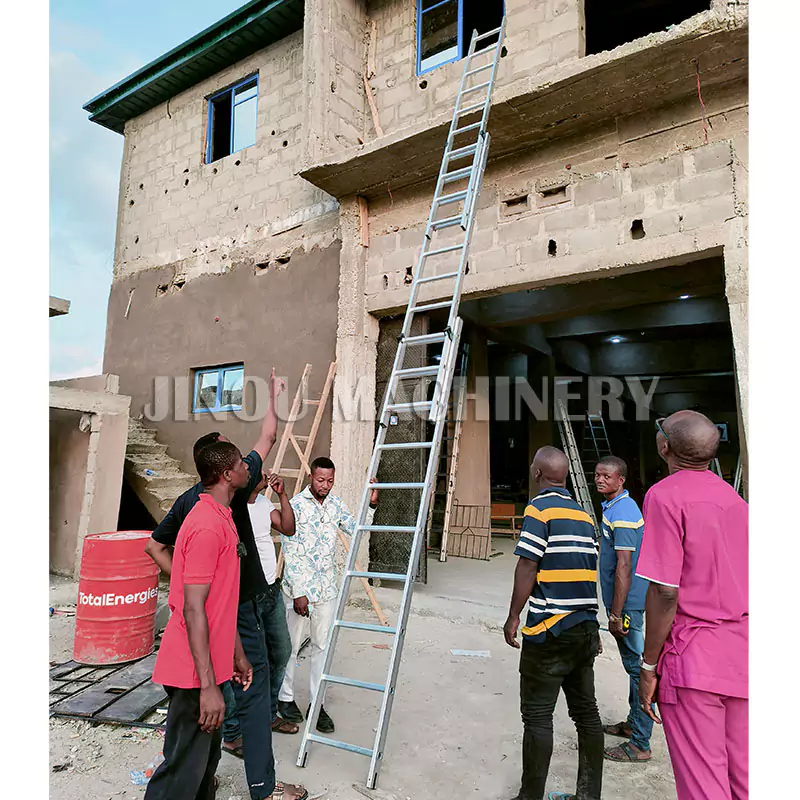

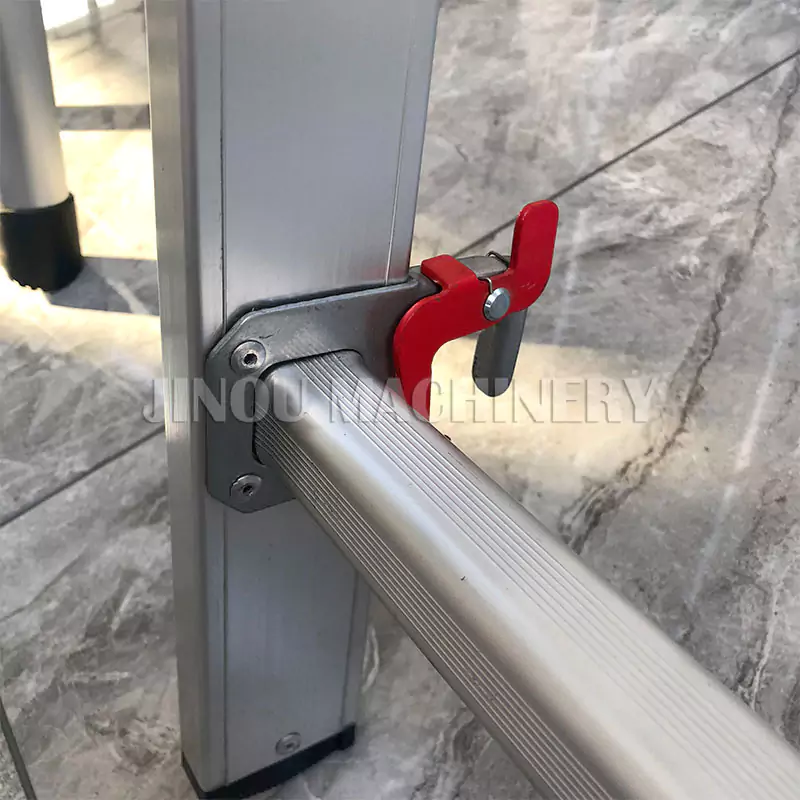

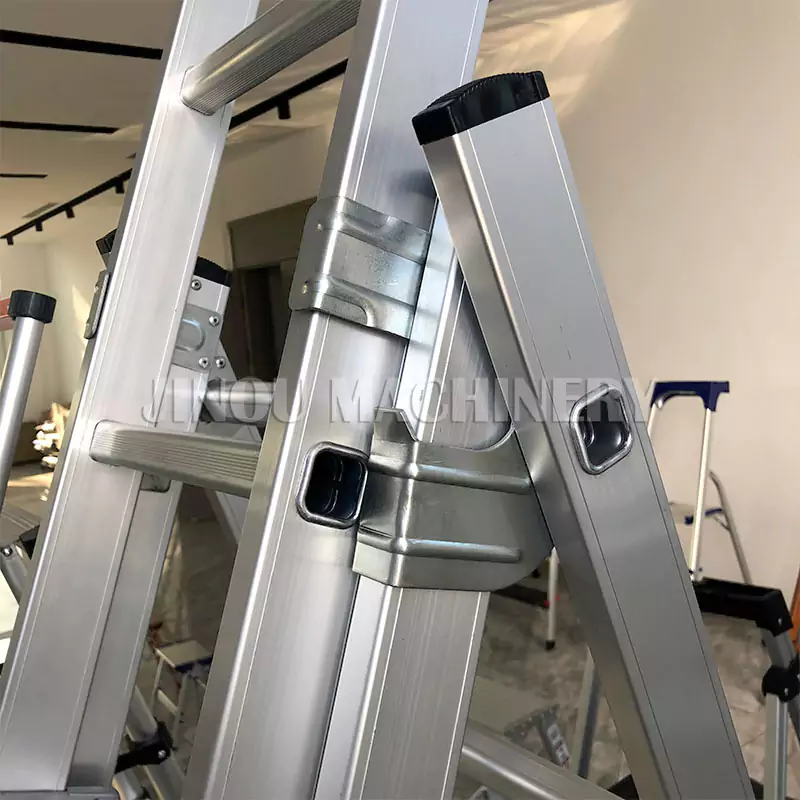

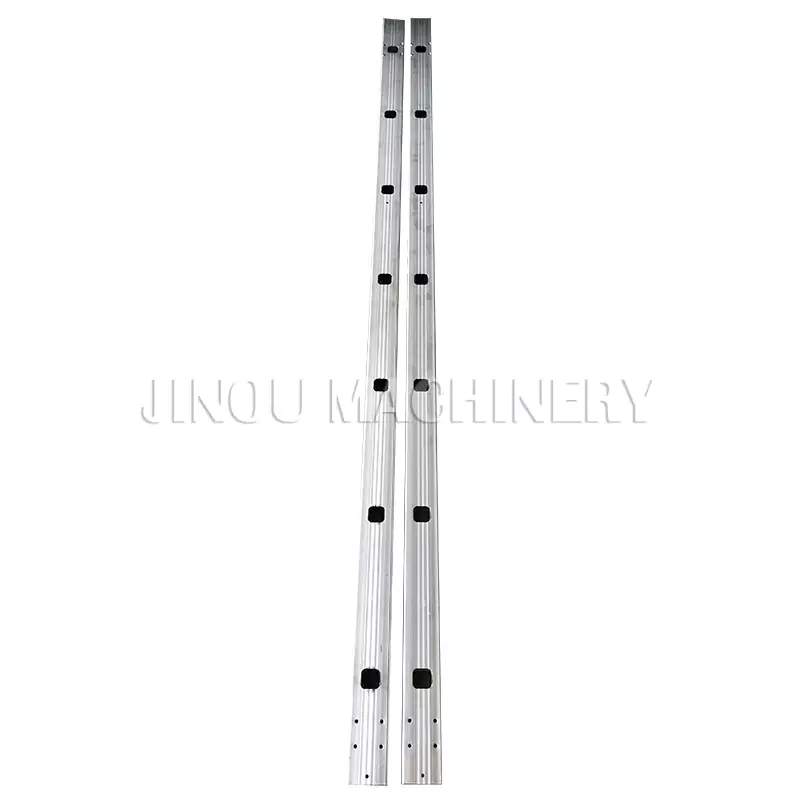

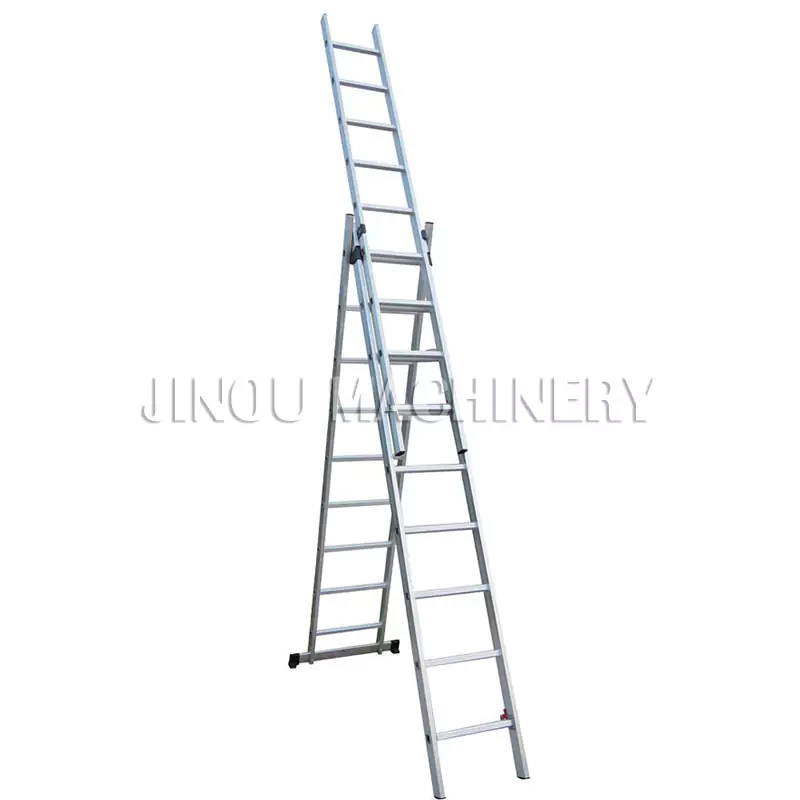

Finished Product Effect
