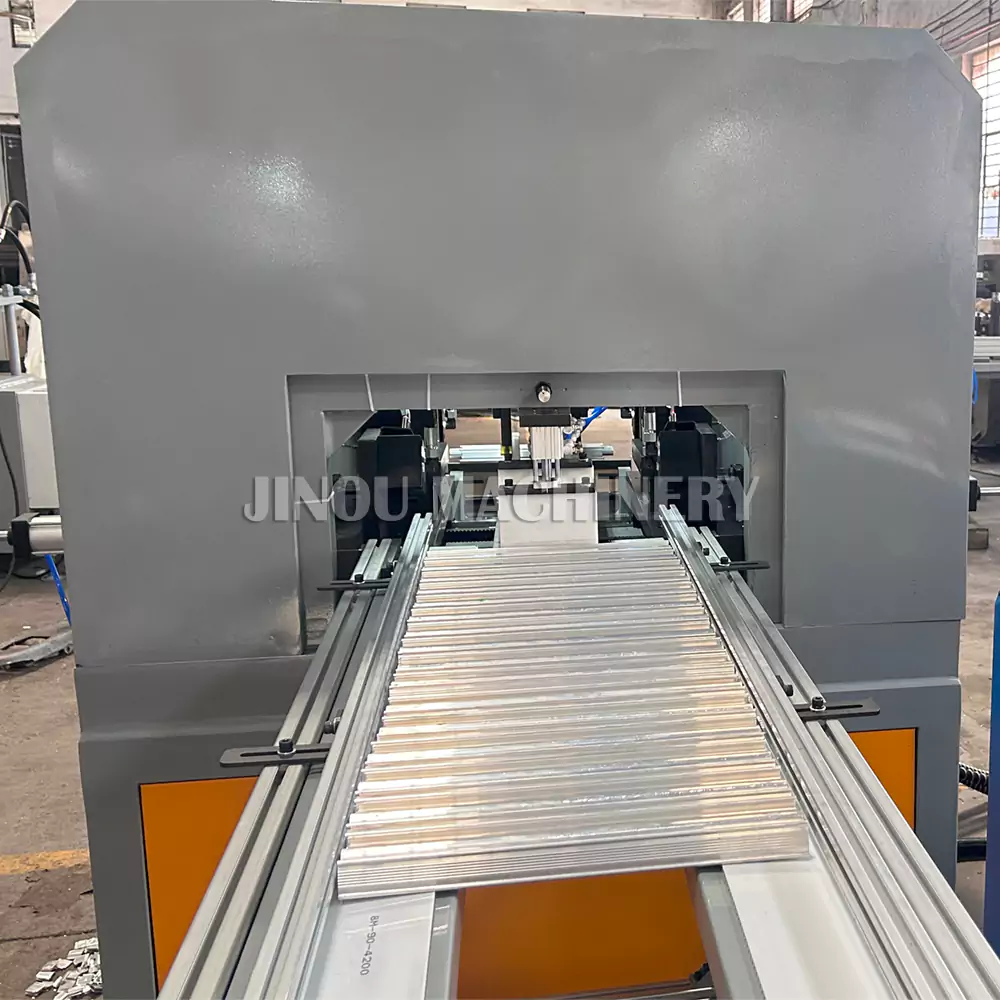

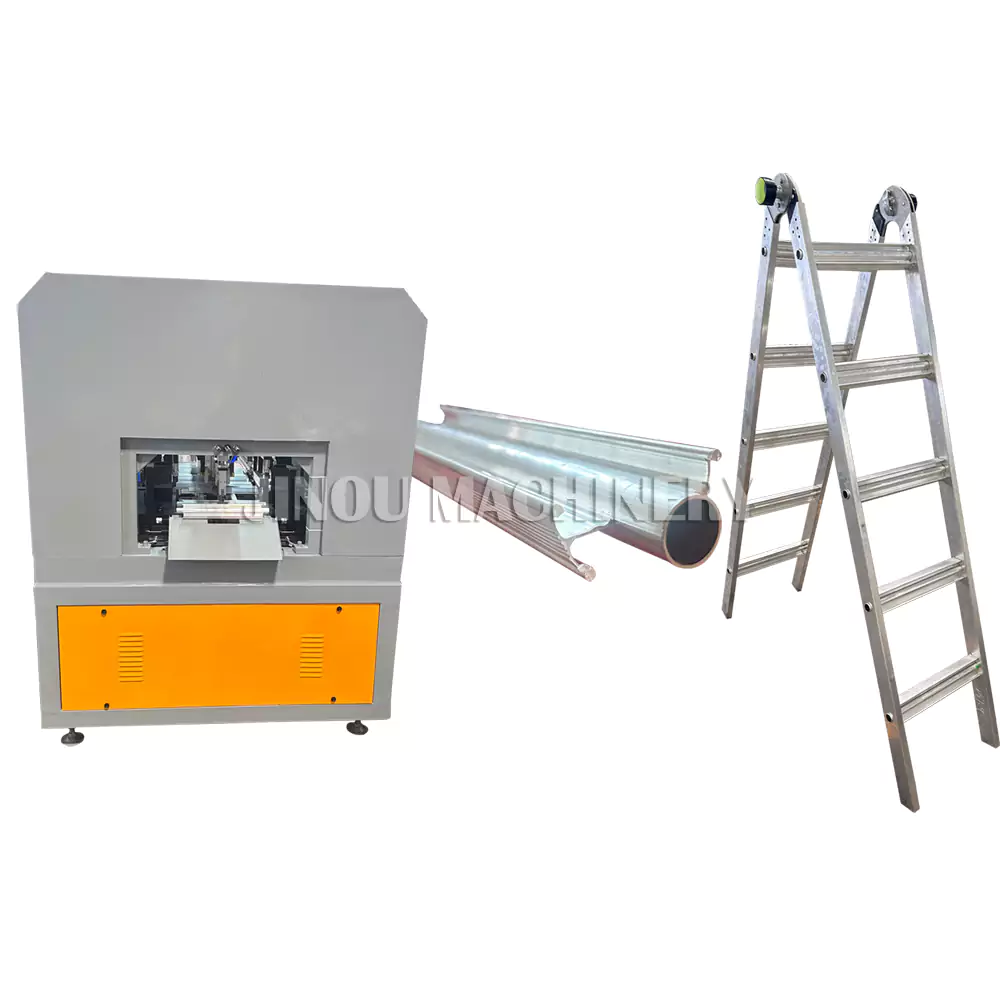

Name: Punching Machine
Type: Automatic Punching Machine For Steps
Model No.: JOM-J004
Step length range: 350-600mm
Efficiency: 7s /work cycle
Pressure: Hydraulic
Oil tank: 100L
Oil Pump Max output pressure: 14MPa
Motor Power: 5.5Kw
Air Put: 0.5-0.8Mpa
Voltage: 440V/50HZ/3P
N.T: 1500KGS
Machine size: 270x165x180cm
HS CODE: 8462490000
