Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose

Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose
  • Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose
  • Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose
  • Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose
  • Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose
  • Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose

Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose

Model No.: JOM-R006A
Usage:can be used for Inner tube sqeezing
Machine Type: Hydraulic
Feeding :Manual Feeding material
System Pressure: 14Mpa
Capacity :40KN
Air Pressure:0.6-0.8Mpa
Motor Power :7.5kw
Voltage: 380V
Ladder width :  300-600mm
Ladder spacing :  >280 mm
Maximum squeeze stroke: 150 mm
Machine Size:235x120x170cm
Machine Weight : 1200kgs

DETAILED

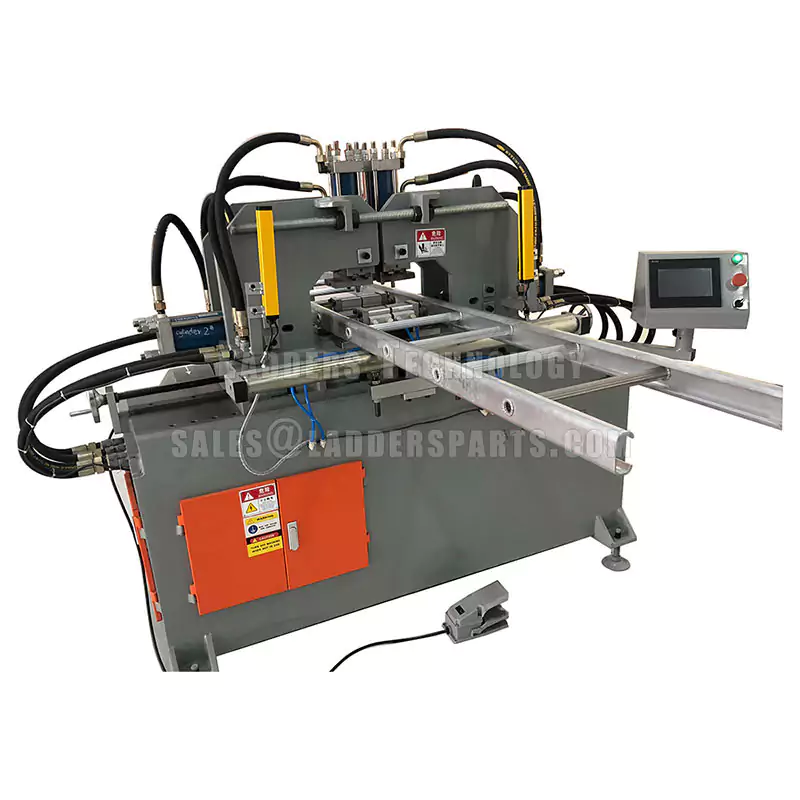

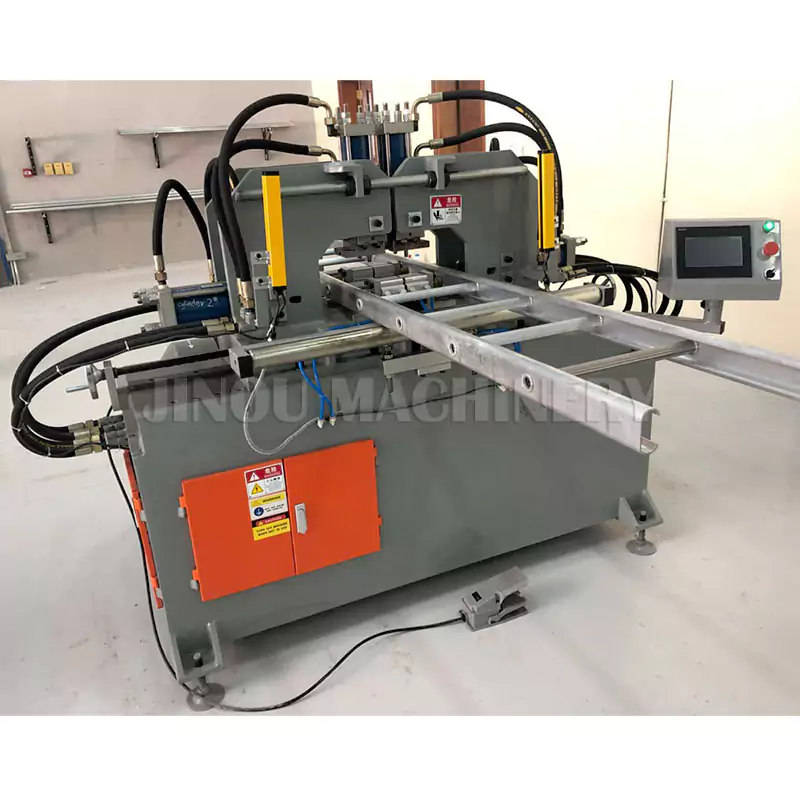

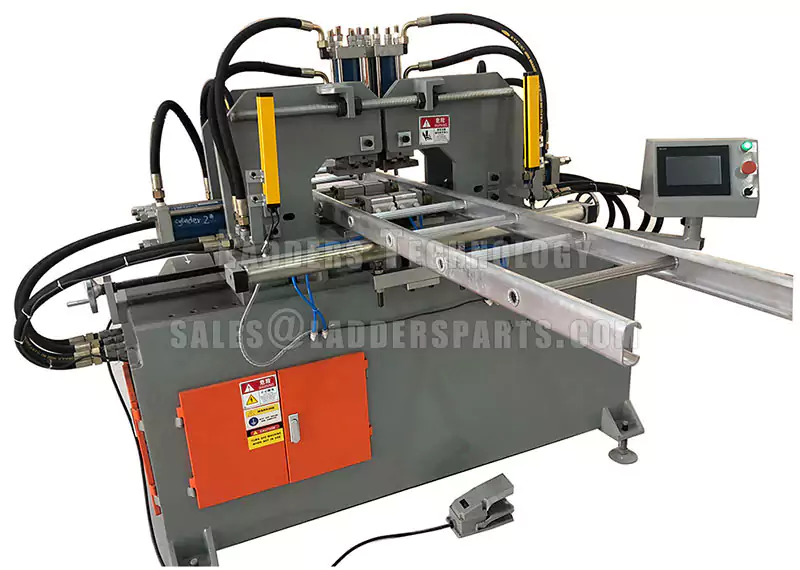

Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose Ladder
Name :Ladder Making Machine-Dual Head Inner Tube Squeezing Machine
Type: Dual Head Inner Tube Squeezing Machine
Model No.: JOM-R006A
Usage:can be used for Inner tube sqeezing
Machine Type: Hydraulic
Feeding :Manual Feeding material
System Pressure: 14Mpa
Capacity :40KN
Air Pressure:0.6-0.8Mpa
Motor Power :7.5kw
Voltage: 380V
Ladder width :  300-600mm
Ladder spacing :  >280 mm
Maximum squeeze stroke: 150 mm
Machine Size:235x120x170cm
Machine Weight : 1200kgs
HS CODE:8463900090

Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose Ladder

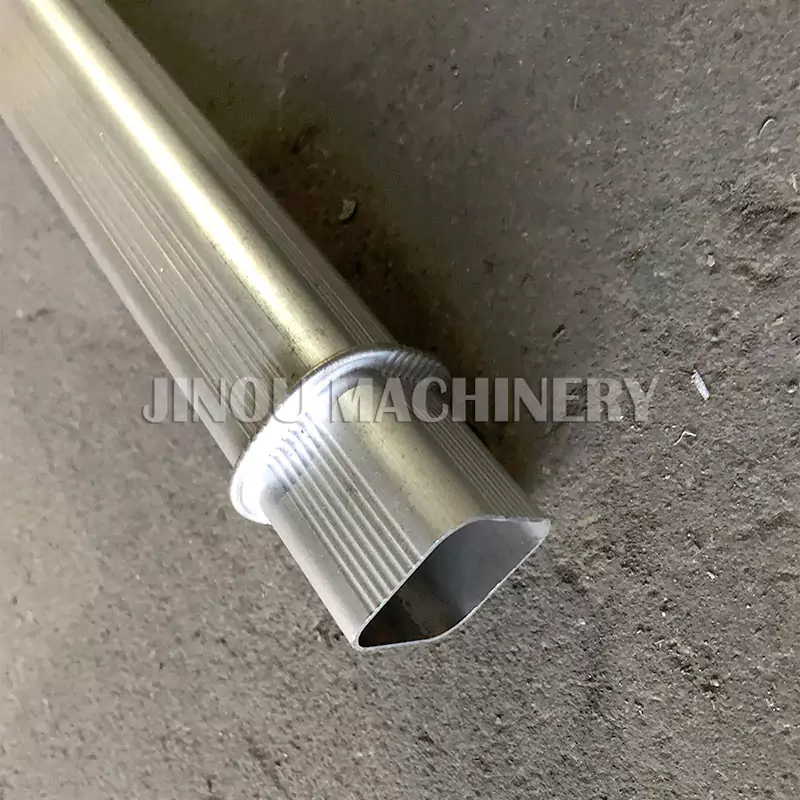

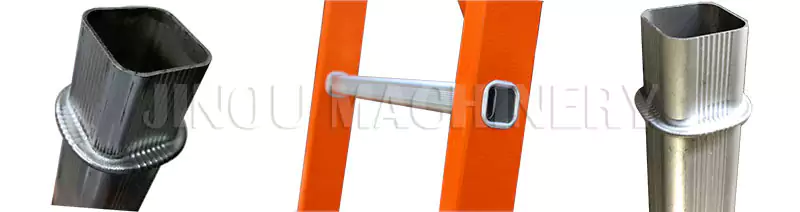

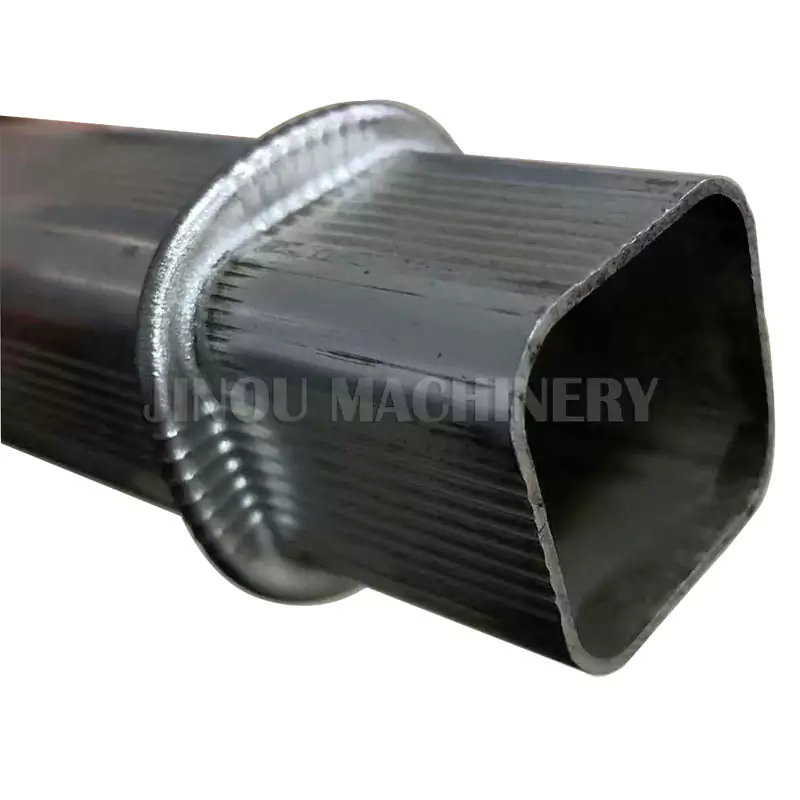

Finished Product Effect

Ladder Crimping Machine For The Aluminium Square Rungs For The Frp Multi Purpose Ladder
