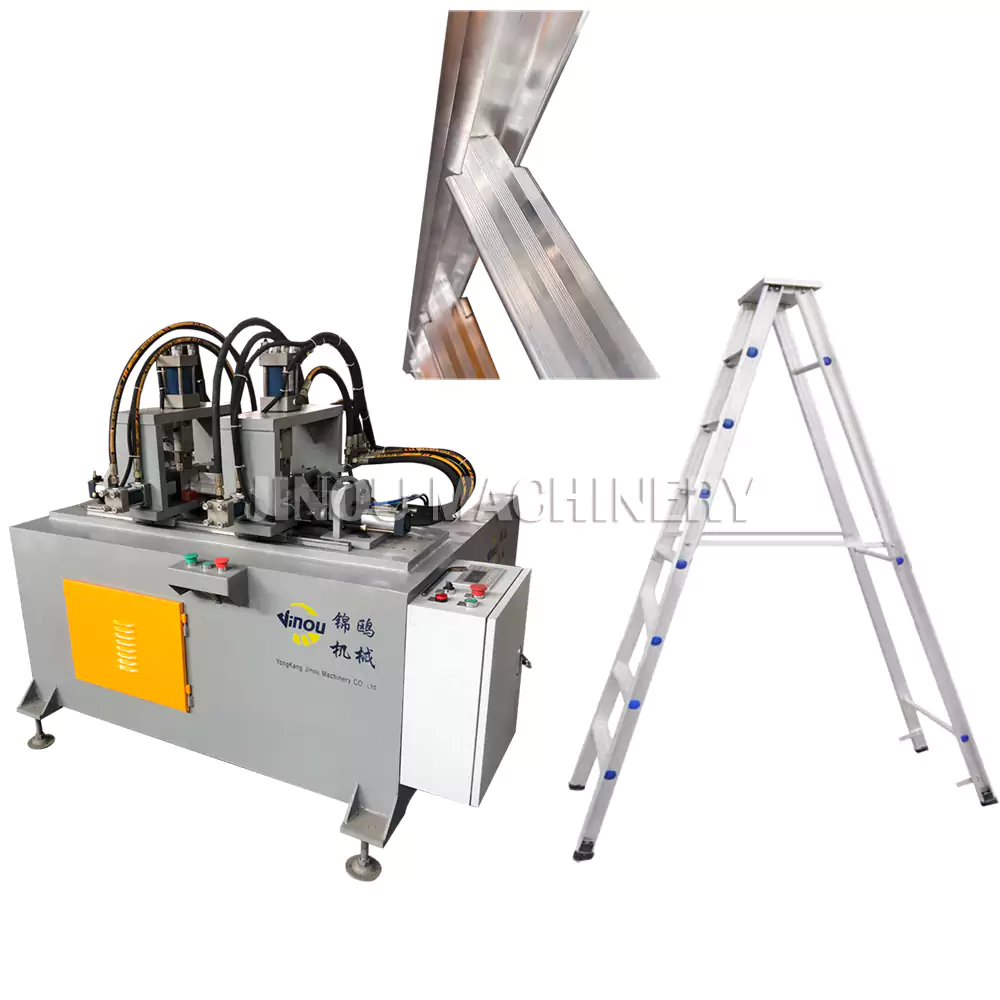

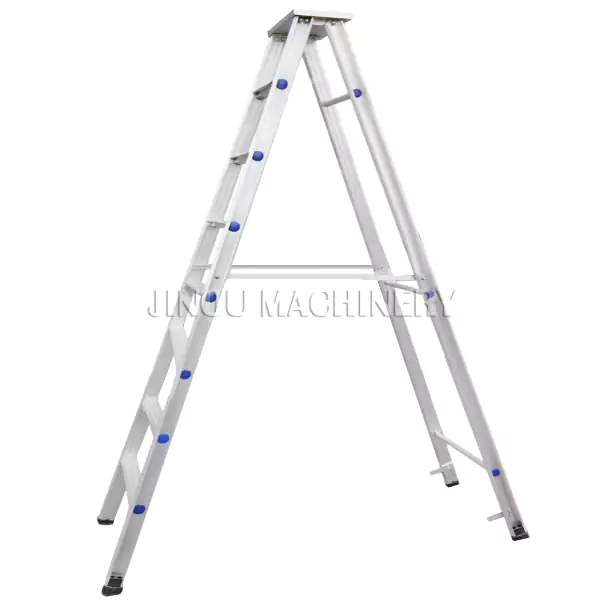

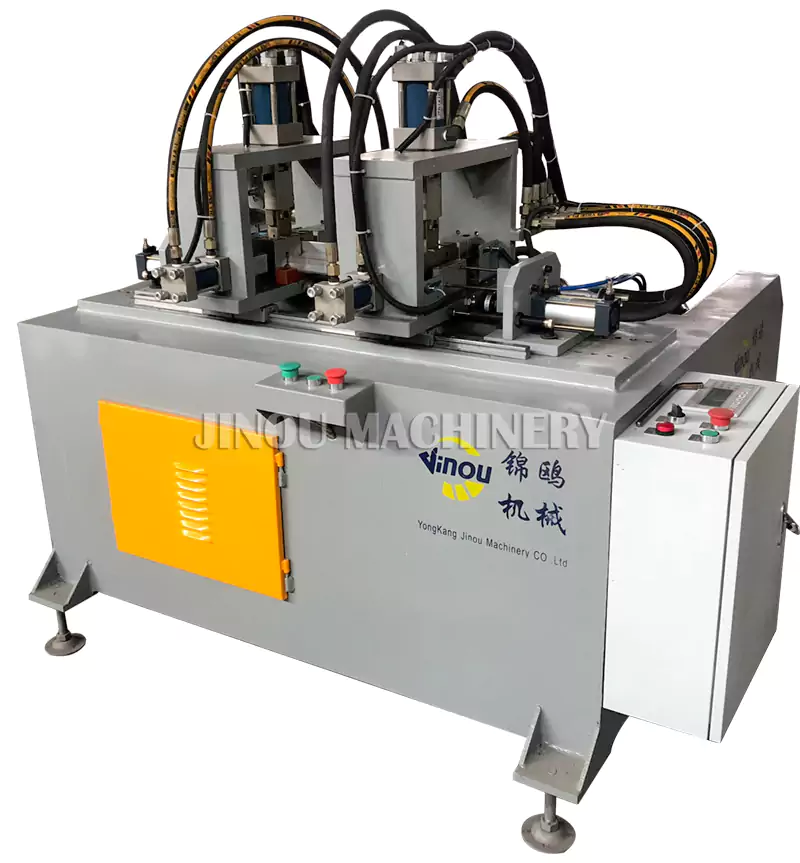

This is the Cutting and Punching machine for the aluminium folding Ladder .

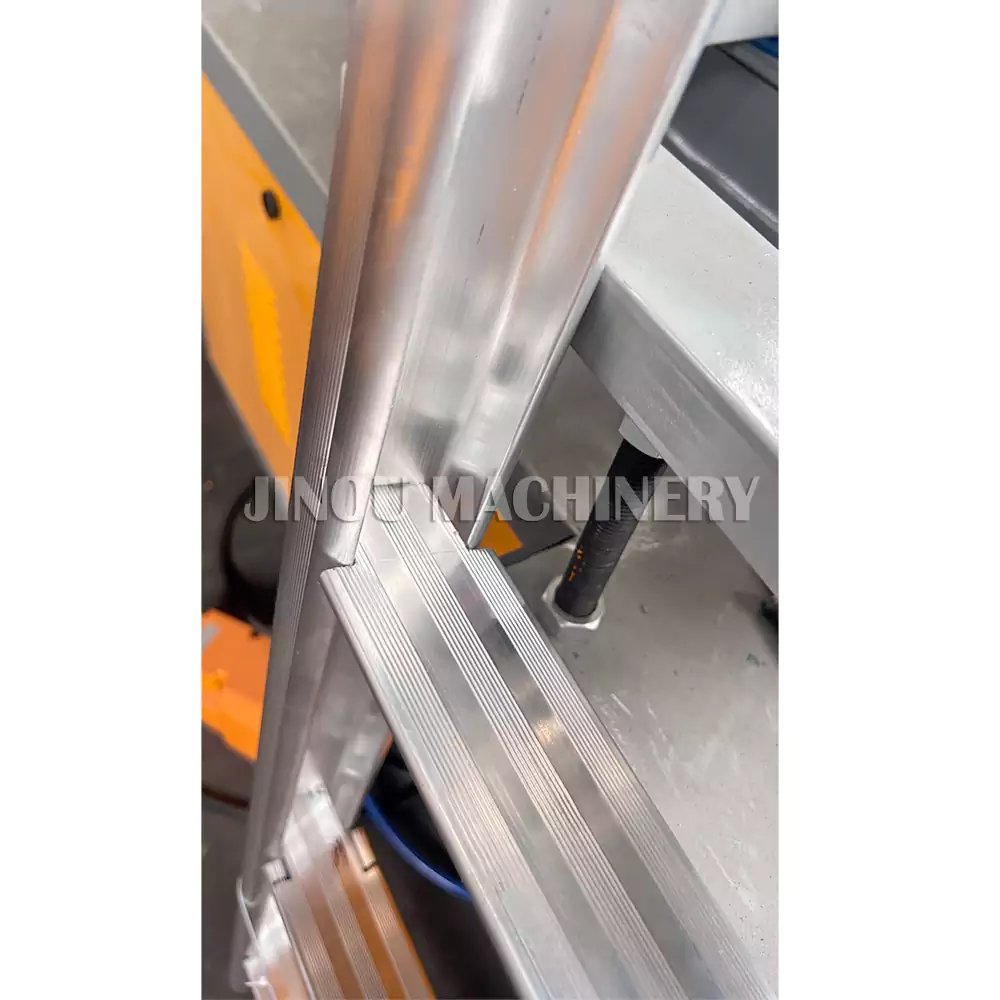

Punch the gaps at the same time.
It easy to handle, and size are adjustment. and very high efficiency.
They are also suitable for both the aluminium steps and fiberglass steps, only needs to change the mold for the machines. Different molds for different material of molds.

Technical Data:
Step size: 350-600 mm
Efficiency: 7s /work cycle
Pressure: Hydraulic
Oil tank: 100 L
Oil Pump Max output pressure: 14 MPa
Motor Power: 5.5 Kw
Air Put: 0.5-0.8 MPa
Voltage: 440V/60HZ/3P
Machines are with CE certificate.
