Multi-Purpose Ladder Parts

Multi-Purpose Ladder Parts

Semi-fnished Multi-Purpose Ladder 4×4, 4×3, 4×2, 4×5
Status: Cut well, Punched, assembly the hinges and put on the rivets, only need to expand and rivet

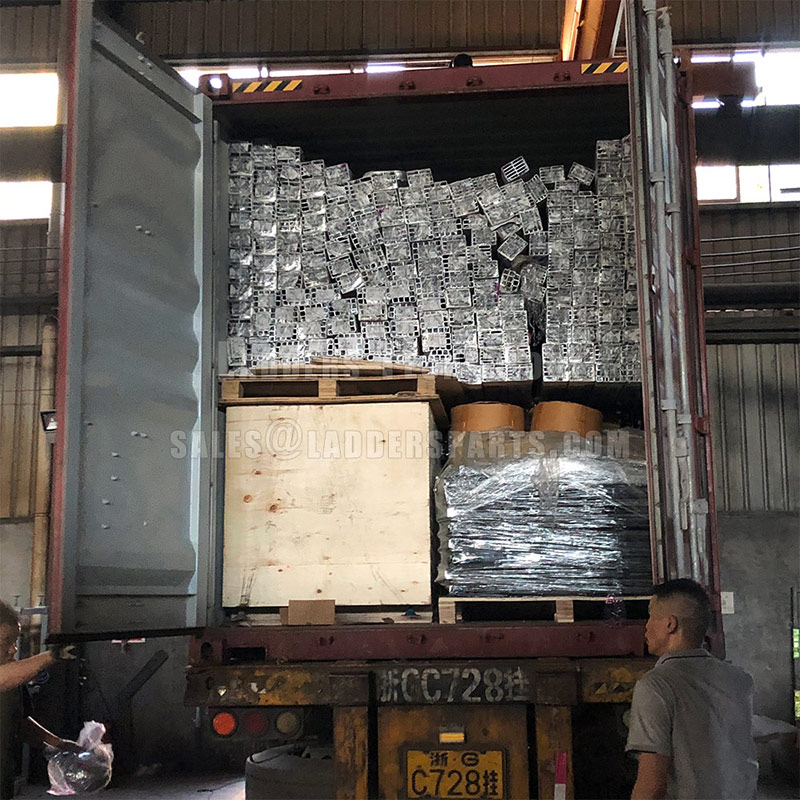

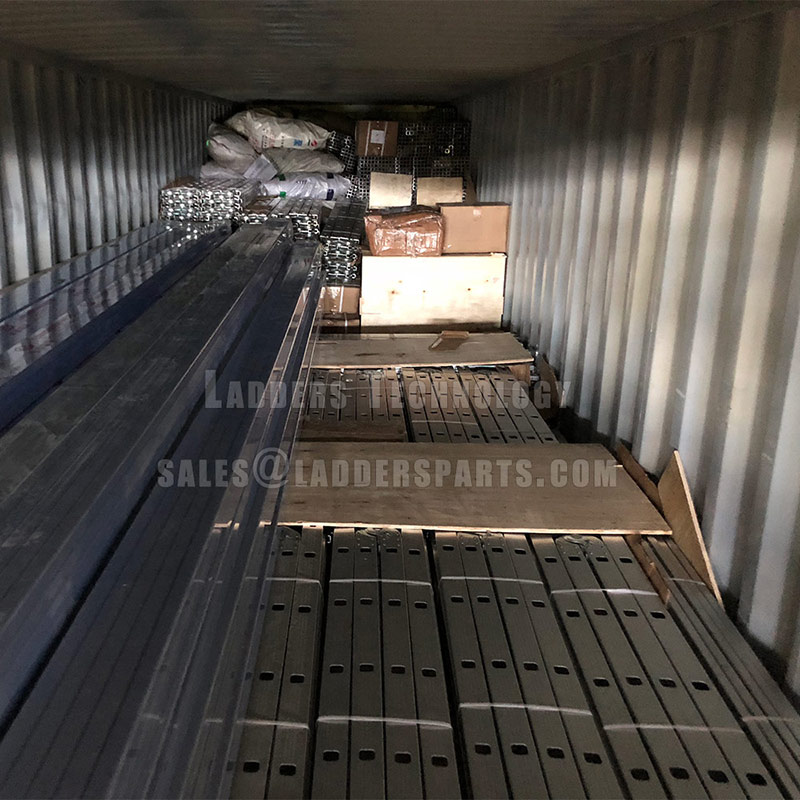

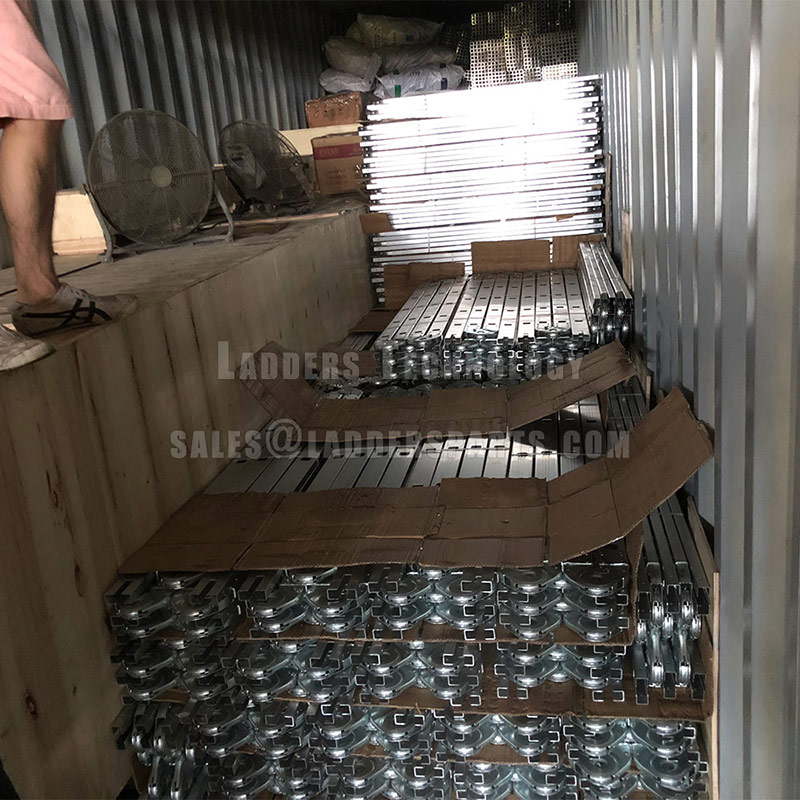

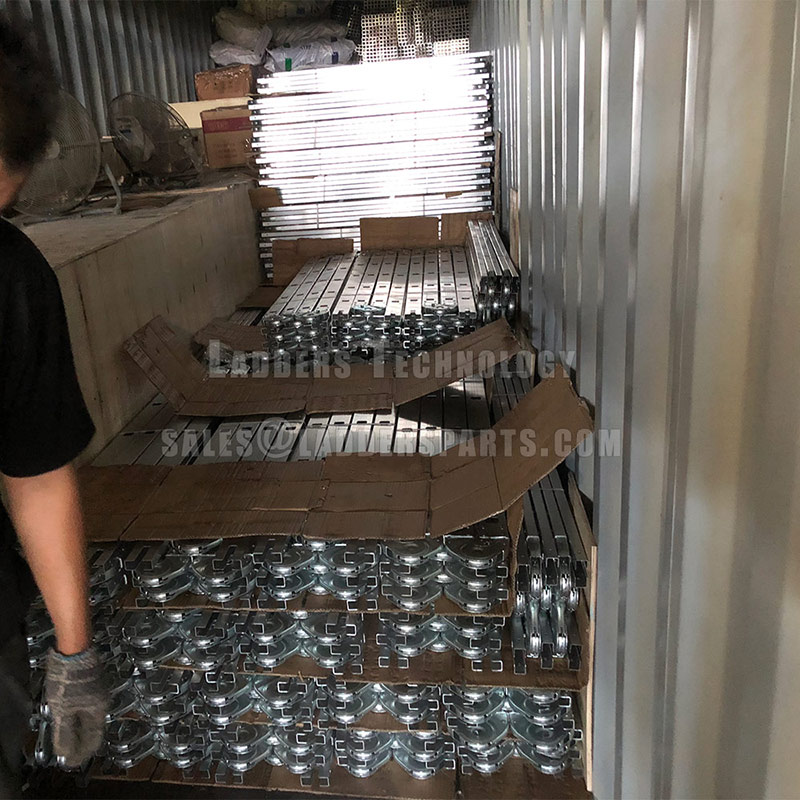

Packing: CKD Ladder in Bundle

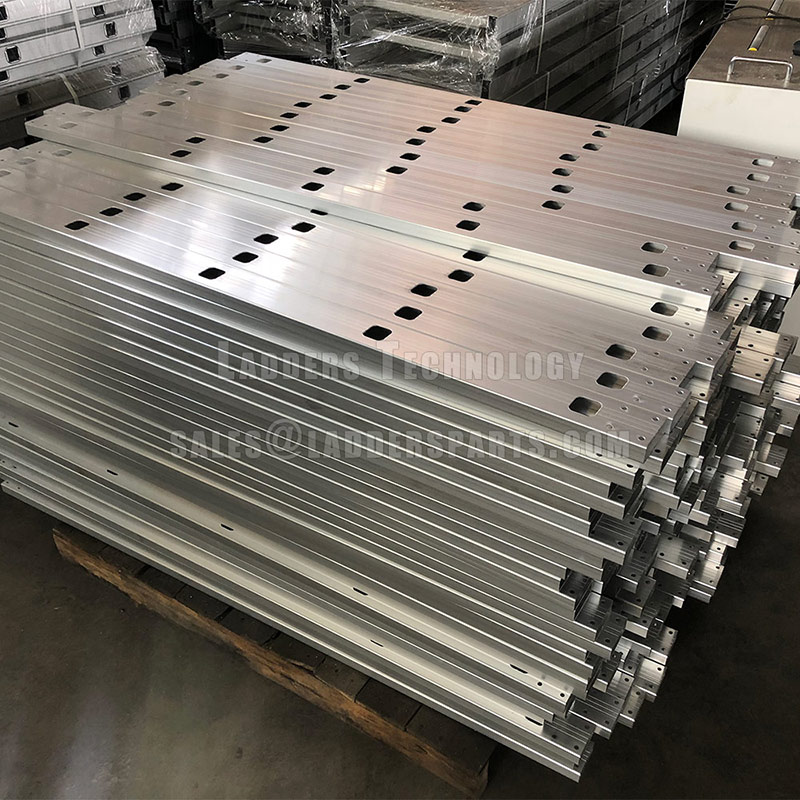

Balance Bar: Punched the hole and gap. but NOT Assembly the plastic parts, packed in Bundle
Rungs: Cut Well. packed in bundle
Plastic parts for the balance bar: in bags
Screws and bolts for balance bar: in bags
Ladder Spacing: 280mm
Ladder Width: 355mm
Balance bar Width: 600mm
Profile's Drawings:
side profiles: 62.8×23.9×1.16 mm
rungs profiles: 29.9×29.9×1.0 mm
balance bar profiles: 63×17×1.0 mm

DETAILED
Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder

Semi-fnished Multi-Purpose Ladder
