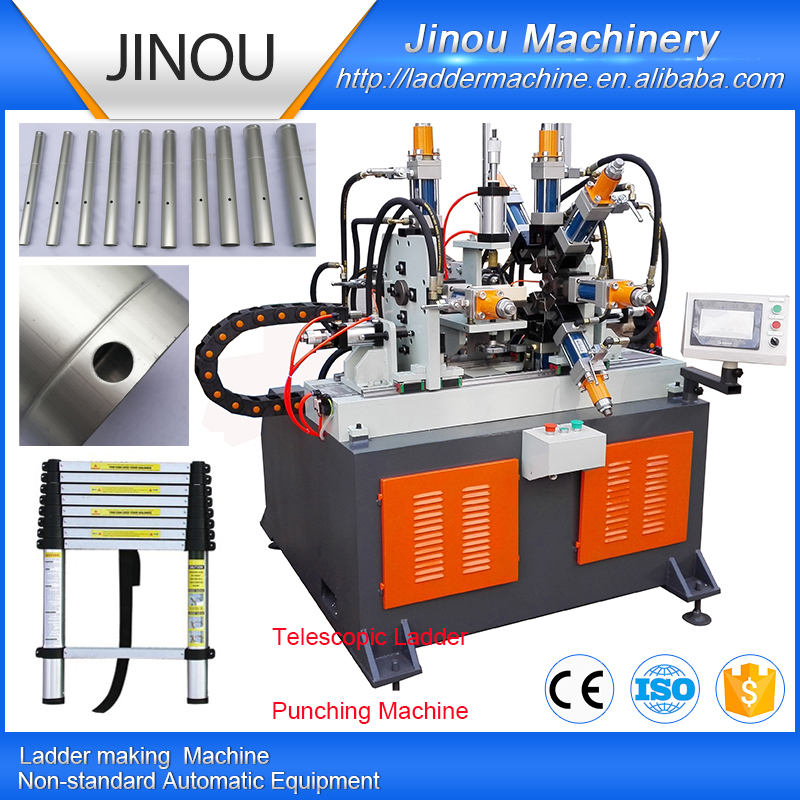

Vertical Pipe Punching Machine for Telescopic Ladder

Vertical Pipe Punching Machine for Telescopic Ladder

Work Efficiency 3 Seconds / Work Cycle
Processing Length Of Tube Range 410-700mm
Processing Size Of Tube Range Φ28-Φ84mm
Motor Power 5.5KW
Weight 1200KG
Dimensions 150×150×170CM

DETAILED
Control system using PLC + touch screen, simple and convenient human-computer interaction interface.

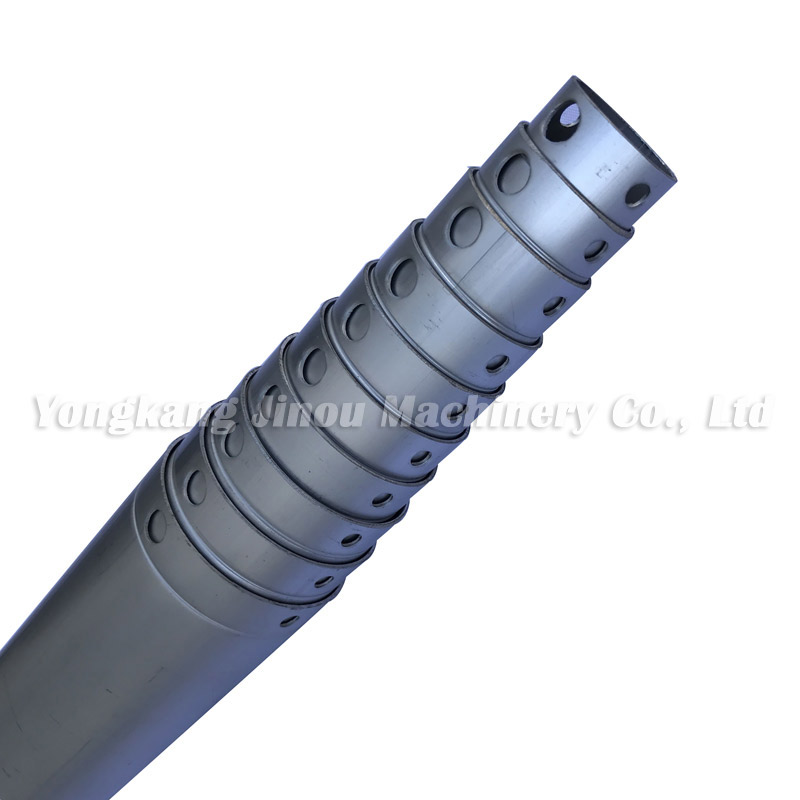

Middle Holes in tube using the drilling method, suitable for spacing adjustable of ladder and there only a round hole in the middle of tube in extension ladder processing ,(used for producing ladders which have different spacing distance. )
Automatic feeding material, human only need to put the pipe on the machine holder.
The shape of the tube can be made by client’s sample or drawing: round tube, oval tube, D-tube, triangular tube, rectangular tube and so on.
The position of the hole and the number of holes can be made according to the client’s sample or drawing.
