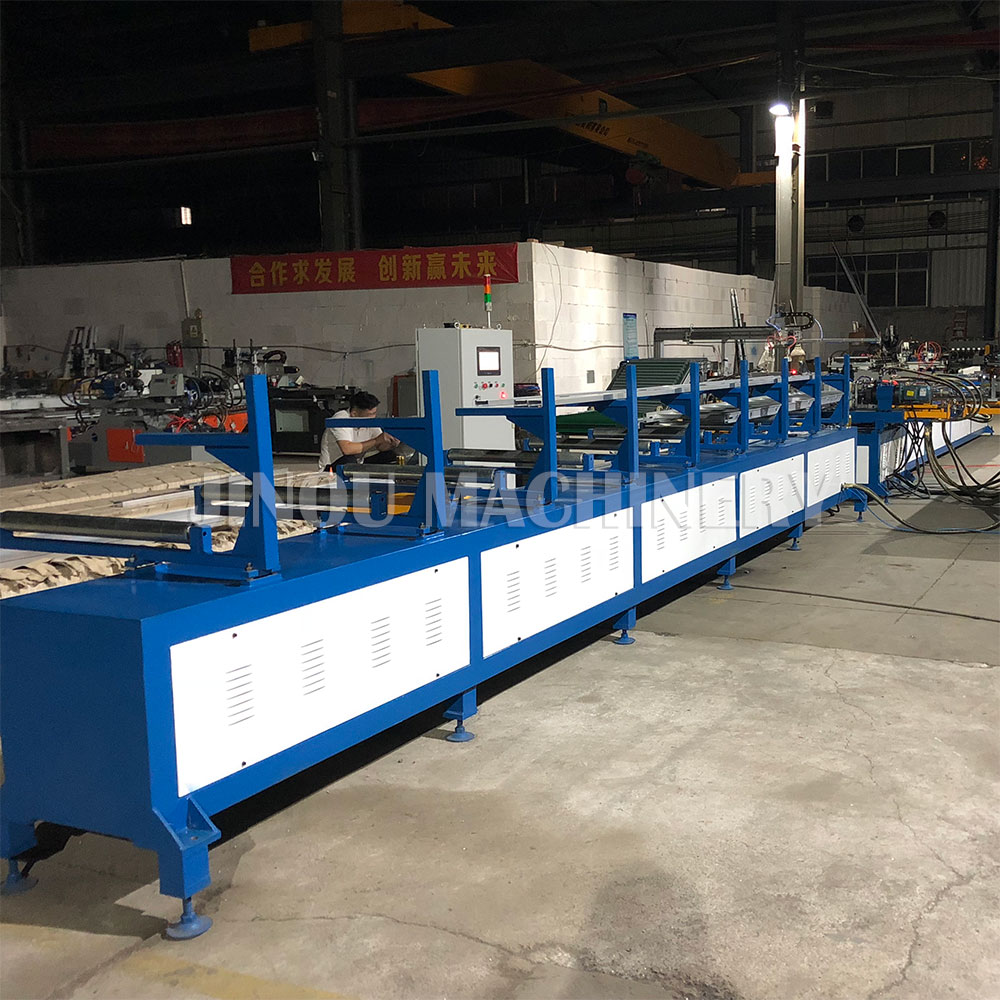

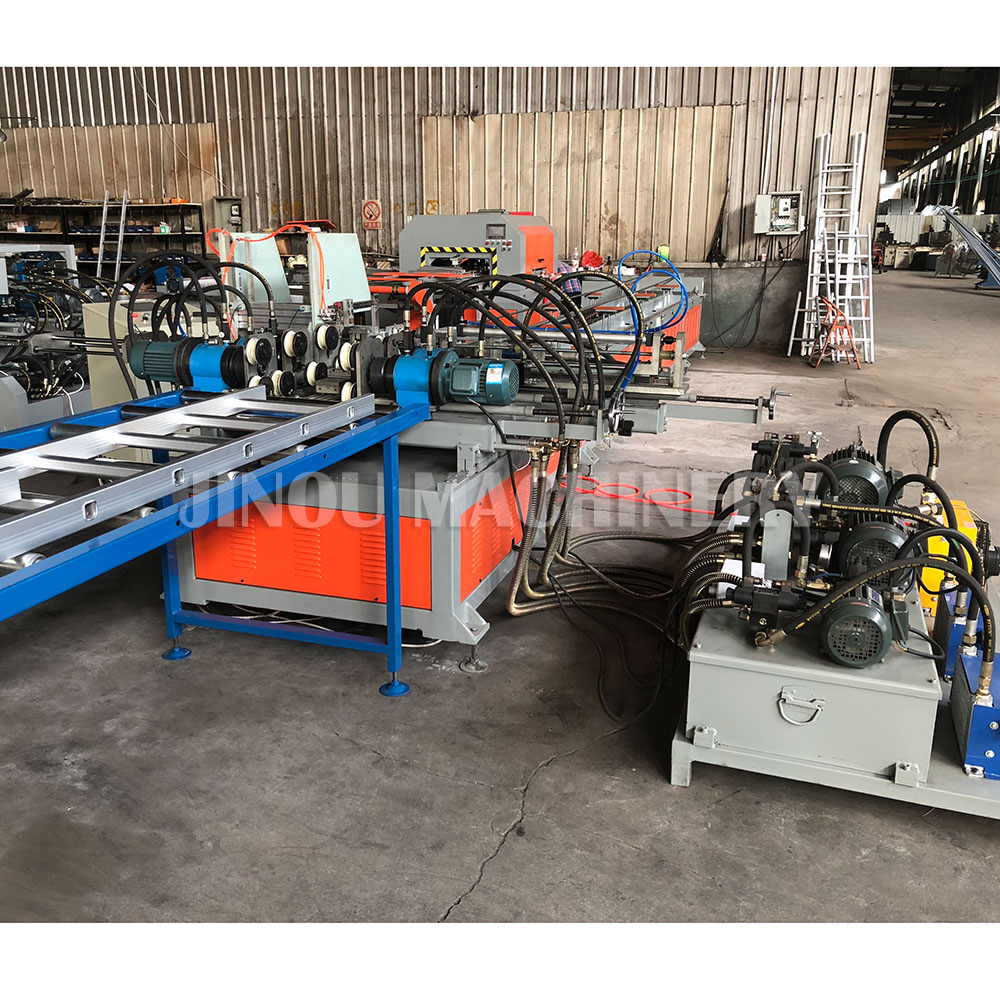

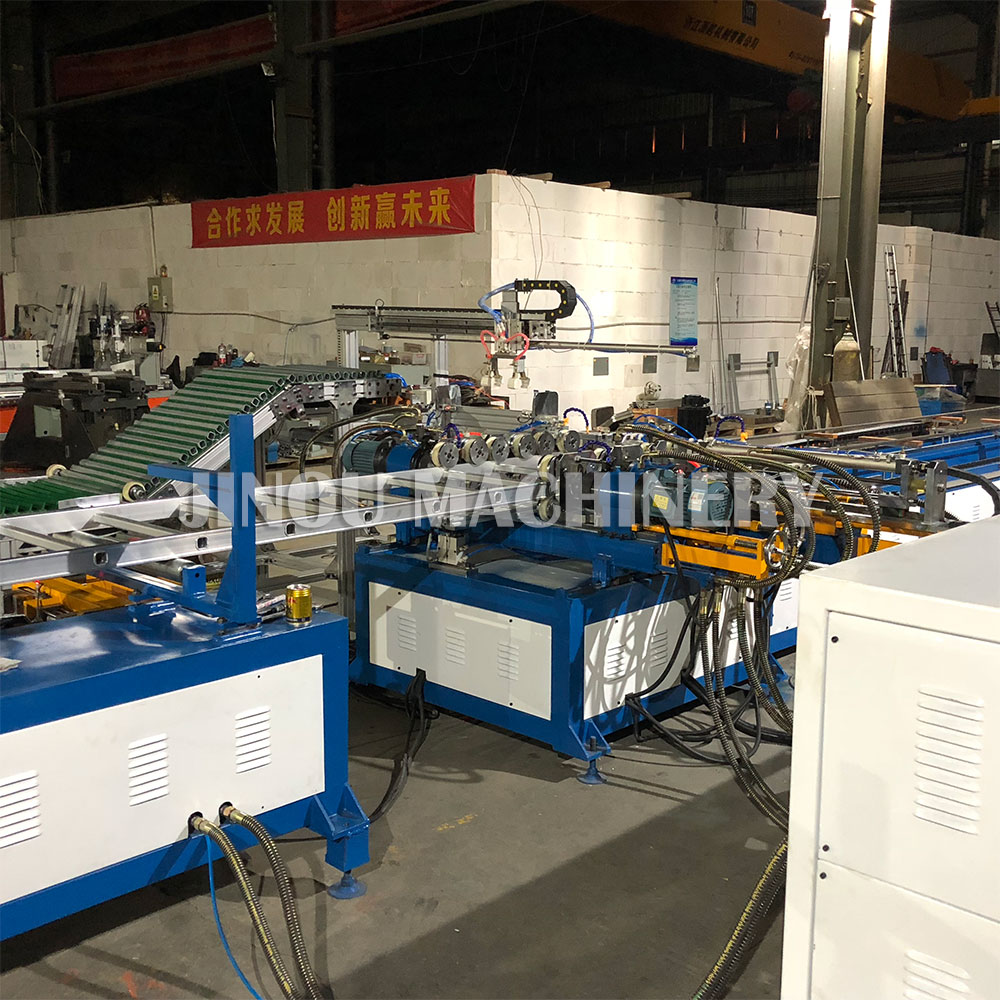

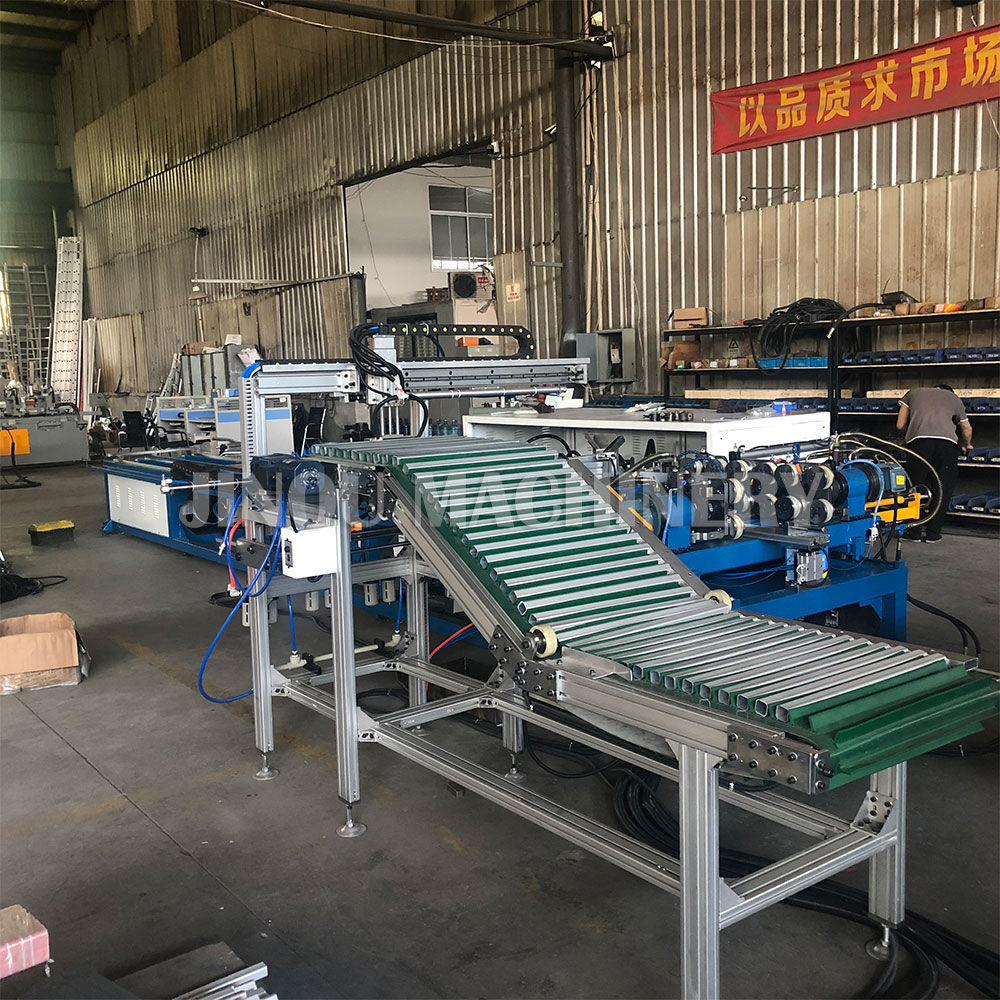

This machine automatically produces parallel ladders and Wind systems. The advantages of short cycle time and high output quality are concentrated in a single automatic equipment.

Characteristics:
- Complete solution for ladders production;
- Profile rung punching;
- Automatic profile movement with pneumatic pick and place;
- Rung insertion;
- Vertical stacker for manual rung loading with autonomy for 20 rungs;
- Internal rung expansion;
- Orbital rung riveting.

Techincal information:
Name :Fully automatic ladder Machine (Punching the holes ,Inserting the tubes, expanding and riveting in one Machine)
Cycle Time:25seconds for the punching, inserting, expanding and riveting .
Motor Power: 15 Kw
Power : 380V/50HZ Three phase four wire
Flaring shape :any shape
Process ladder width: 350-600mm
Distance of ladder rung :260-300mm
Overall dimensions : 7000x3100x1700mm
Net Weight: 3000Kg
HS CODE :84629990
