Tube End Forming Machine for Aluminium Scaffolding

Tube End Forming Machine for Aluminium Scaffolding


DETAILED

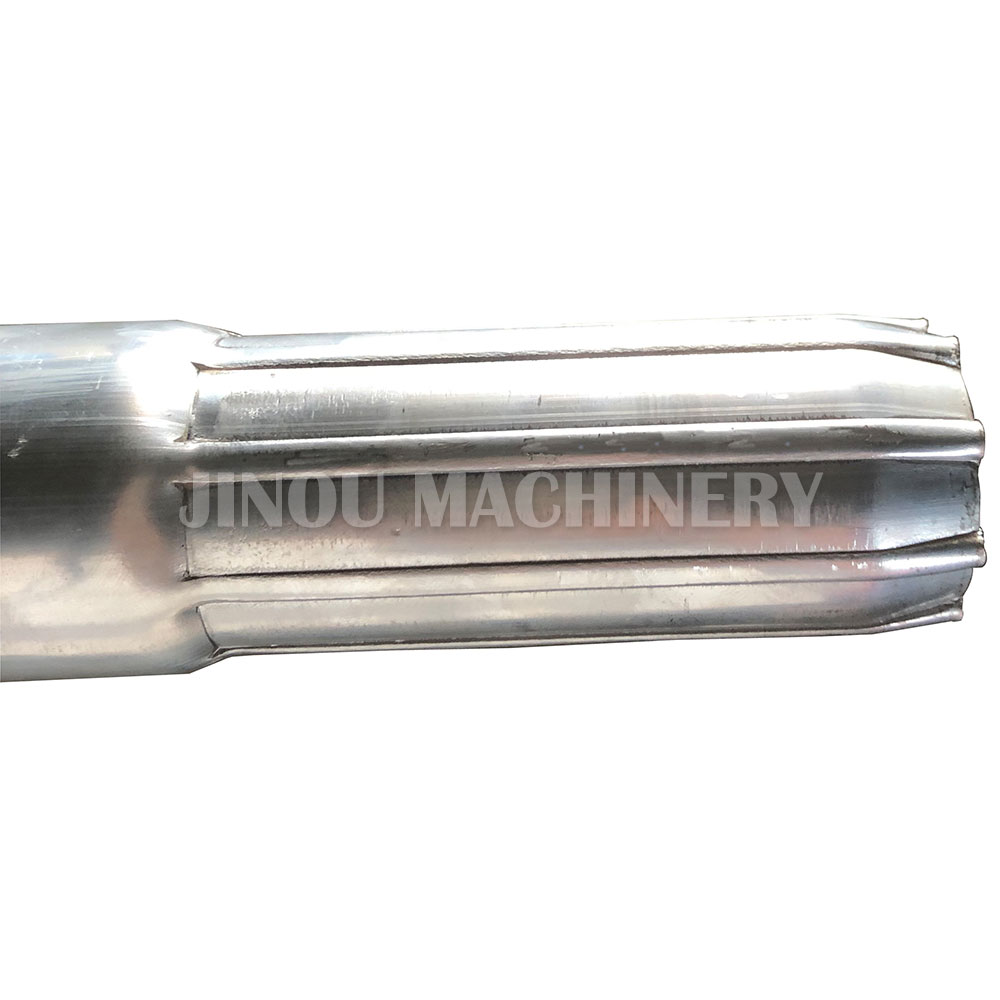

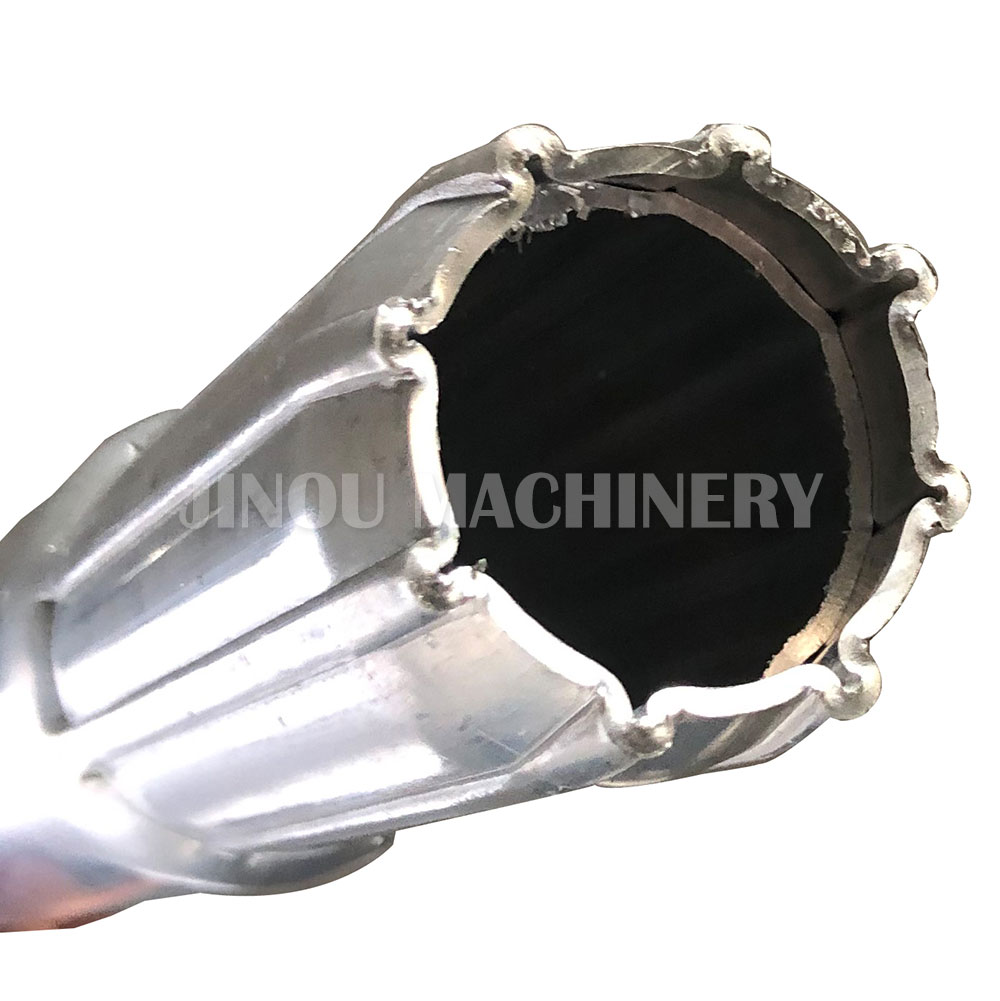

Tube end forming machine is used for reduce the tubes for the scaffolding. it’s easy to handle, easy set up. Tubes after forming, it’s easy to connect with the other tubes to make the scaffolding tight and strong.

Technical data:
Manual pipe forming machine
with fixture to center the pipe.
With a Full stop to make sure the Inner pipe will not fall out. (A punch mold to stop it.)
Forming material: Aluminium
Our pipe OD dia is 50 mm
And 2 meter long
Length of forming 120 mm
Pipe dia before forming after forming 45.5 mm thickness 2mm main pipe
Inside we use support pipe of 1.5 mm
Power Input: 380v-440V/50HZ/3Phase
N.W.: 300 KGS
Dimensions: 118x75x126
HS CODE: 8462999000
